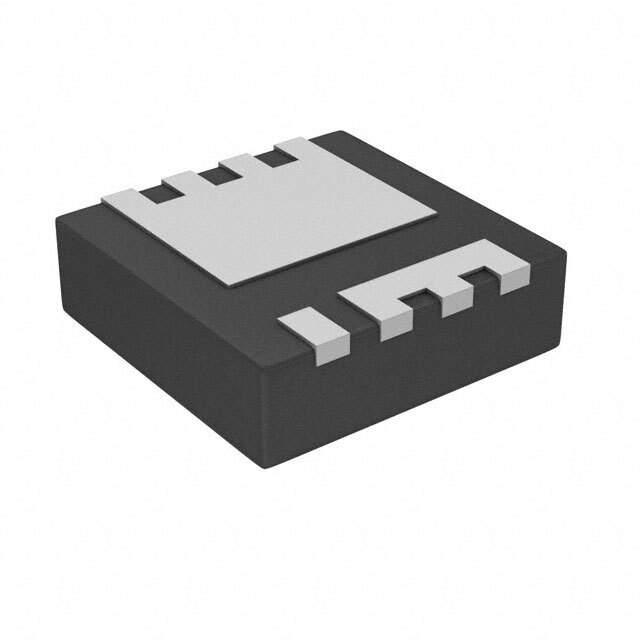

BSZ146N10LS5ATMA1

Name: BSZ146N10LS5ATMA1
Brand: Infineon Technologies
SKU: 965030
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BSZ146N10LS5ATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 100V 40A TSDSON / N-Channel 100 V 40A (Tc) 52W (Tc) Surface Mount PG-TSDSON-8-FL
Datasheet	BSZ146N10LS5ATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	OptiMOS™ 5
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	14.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.3V @ 23µA
Gate Charge (Qg) (Max) @ Vgs	3.2 nC @ 4.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1300 pF @ 50 V
FET Feature	Standard
Power Dissipation (Max)	52W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PG-TSDSON-8-FL
Package / Case	8-PowerTDFN
Base Product Number	BSZ146
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	SP001385466,448-BSZ146N10LS5ATMA1DKR,448-BSZ146N10LS5ATMA1CT,INFINFBSZ146N10LS5ATMA1,448-BSZ146N10LS5ATMA1TR,2156-BSZ146N10LS5ATMA1,BSZ146N10LS5ATMA1-ND
Standard Package	5,000
Win Source Part Number	965030-BSZ146N10LS5ATMA1
Ultra Librarian 3D Model	Ultra Librarian BSZ146N10LS5ATMA1 CAD Model

Alternative Products

Description

The Infineon Technologies BSZ146N10LS5ATMA1 is an N-channel MOSFET transistor designed for use in power distribution switches and load drivers.

Drain to Source Voltage: 100 V
Continuous Drain Current: 40 A
Power Dissipation (Max): 52 W
On-Resistance (Typical): 14.6 mOhm @ 20 A and 10 V
Package: 8-pin PowerTDFN
Gate Charge: 3.2 nC @ 4.5 V
RoHS Compliance: RoHS compliant
Temperature Range: -55 °C to 150 °C
