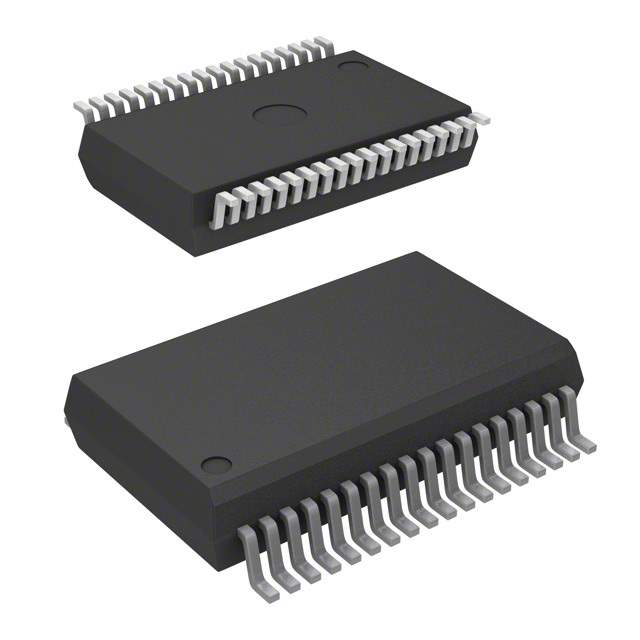

BTS5480SF Real Image
Same model may have multiple batches, images only for reference.

BTS5480SF

Part No BTS5480SF
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC SW SMART HI SIDE 4CH DSO36-43
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Not For New Designs
Switch Type General Purpose
Number of Outputs 4
Output Type N-Channel
Voltage - Load 8 V to 17 V
Supply Voltage - Operating 3 V to 5.5 V
Rds On (Typ) 3.5 mOhm, 11 mOhm
Features Slew Rate Controlled
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package PG-DSO-36-43
Win Source Part Number 039712-BTS5480SF
Popularity Medium
Supply and Demand Status Balance

Description

Overview

The BTS5480SF is tailored for those requiring reliable, high-side switching power capabilities with strong safety protocols, fitting seamlessly into automotive and industrial applications.

Features and Benefits

  • Integrated thermal shutdown to protect against overheating
  • Short-circuit protection for operational safety
  • Advanced load diagnostics for immediate error reporting
  • Wide operational voltage range for versatile usage

Applications

  • Automobile motor control
  • Factory automation processes
  • Building management systems
  • Renewable energy systems
