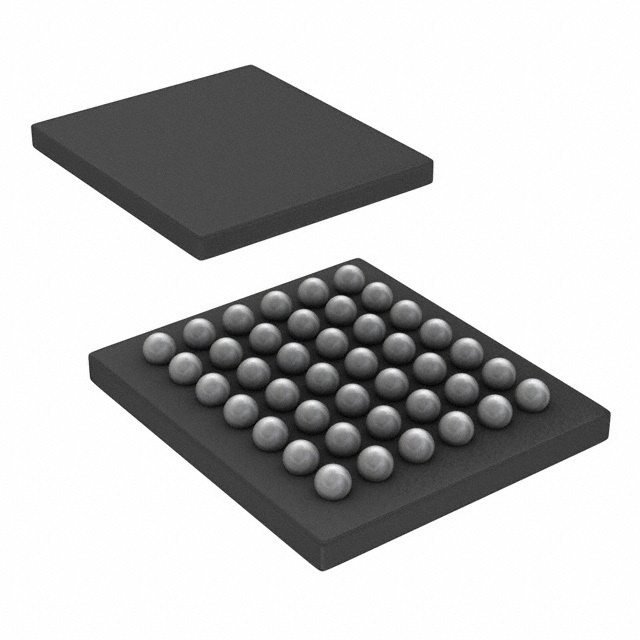

Same model may have multiple batches, images only for reference.
CYW20713A1KUBXGT Infineon Technologies
Same model may have multiple batches, images only for reference.

CYW20713A1KUBXGT

Part No CYW20713A1KUBXGT
Manufacturer Infineon Technologies
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 42UFBGA / IC RF TxRx + MCU Bluetooth Bluetooth v4.0 +EDR 2.4GHz 42-UFBGA, WLBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr Infineon Technologies
Series -
Package Tape & Reel
Product Status Active
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.0 +EDR
Modulation 4DQPSK, 8DPSK, GFSK
Frequency 2.4GHz
Data Rate (Max) 3Mbps
Power - Output 10dBm
Sensitivity -91dBm
Memory Size -
Serial Interfaces I²C, I²S, JTAG, SPI, UART, USB
GPIO 8
Voltage - Supply 2.3V ~ 5.5V
Current - Receiving 32mA
Current - Transmitting 59mA
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 42-UFBGA, WLBGA
Supplier Device Package 42-WLBGA (3.02x2.51)
Base Product Number CYW20713
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Win Source Part Number 1353915-CYW20713A1KUBXGT
Ultra Librarian 3D Model Ultra Librarian CYW20713A1KUBXGT CAD Model

Description

The CYW20713A1KUBXGT is a RF Transceiver IC from Infineon Technologies.

  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.0 +EDR
  • Voltage Supply: 2.3V to 5.5V
  • Power Output: 10dBm
  • Sensitivity: -91dBm
  • Serial Interfaces: I²C, I²S, JTAG, SPI, UART, and USB
  • Package: 42-UFBGA, WLBGA
  • Mounting: Surface Mount
  • Series: CYW20713
  • Status: Active
  • Temperature Range: -40°C to 85°C
  • Current Consumption (Receiving): 32mA
  • Current Consumption (Transmitting): 59mA
  • Data Rate: Up to 3Mbps
  • GPIO Pins: 8
