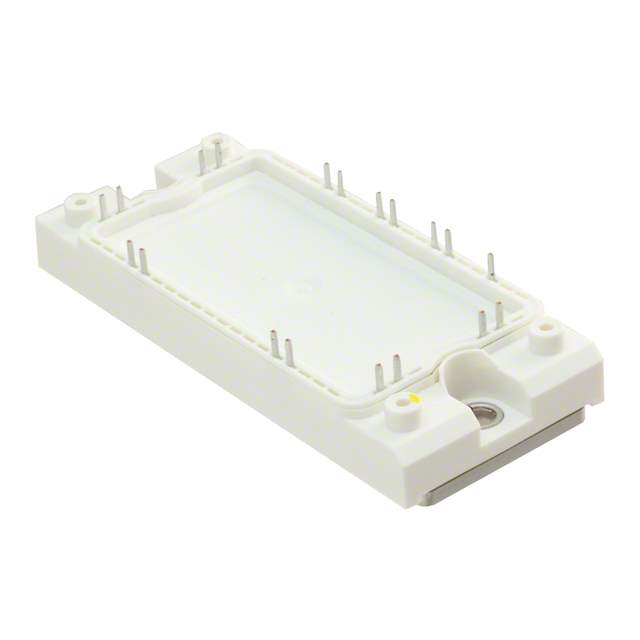

DDB6U134N16RRBOSA1 Real Image
Same model may have multiple batches, images only for reference.

DDB6U134N16RRBOSA1

Part No DDB6U134N16RRBOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1600V 70A 500W  /  IGBT Module NPT Single 1600 V 70 A 500 W Chassis Mount Module
Datasheet
DDB6U134N16RRBOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Package Bulk
IGBT Type NPT
Configuration Single
Voltage - Collector Emitter Breakdown (Max) 1600 V
Current - Collector (Ic) (Max) 70 A
Power - Max 500 W
Vce(on) (Max) @ Vge, Ic 2.75V @ 15V, 70A
Current - Collector Cutoff (Max) 500 µA
Input Capacitance (Cies) @ Vce 5.1 nF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number DDB6U134
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names DDB6U134N16RR,SP000101744,DDB6U134N16RR-ND
Standard Package 10
Win Source Part Number 1055272-DDB6U134N16RRBOSA1
Ultra Librarian 3D Model Ultra Librarian DDB6U134N16RRBOSA1 CAD Model

Description

The Infineon Technologies 1055272-DDB6U134N16RRBOSA1 is a discrete semiconductor product used in transistors.

  • Configuration: Single
  • Maximum Power: 500W
  • Type: NPT IGBT
  • Voltage Collector Emitter Breakdown: 1600V
  • Mount: Chassis Mount
  • Package: Module
  • Operating Temperature: 150°C
