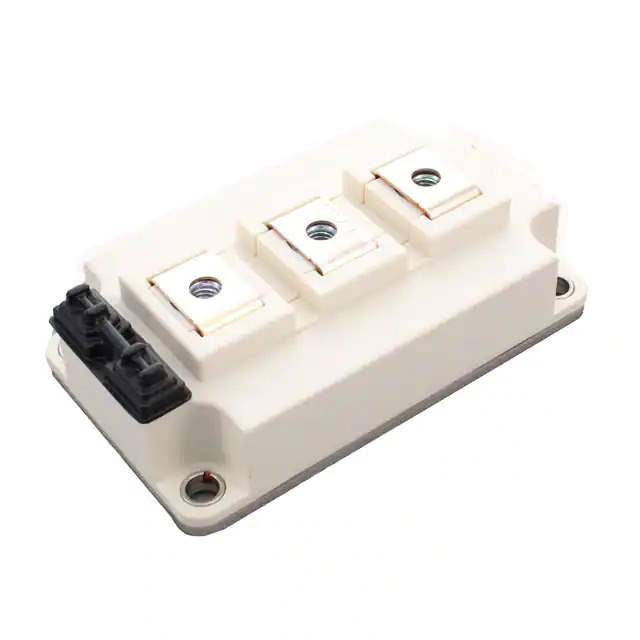

FD450R12KE4PHOSA1 Real Image
Same model may have multiple batches, images only for reference.

FD450R12KE4PHOSA1

Part No FD450R12KE4PHOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MODULE 1200V 450A AG62MM-1 / IGBT Module Trench Field Stop Single Chopper 1200 V 450 A Chassis Mount AG-62MM-1
Datasheet
FD450R12KE4PHOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Infineon Technologies
Series C
Package Tray
IGBT Type Trench Field Stop
Configuration Single Chopper
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 450 A
Vce(on) (Max) @ Vge, Ic 2.15V @ 15V, 450A
Current - Collector Cutoff (Max) 5 mA
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package AG-62MM-1
Base Product Number FD450R12
Standard Package 8
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1350048-FD450R12KE4PHOSA1
Ultra Librarian 3D Model Ultra Librarian FD450R12KE4PHOSA1 CAD Model

Description

The Infineon FD450R12KE4PHOSA1 is a C series IGBT module with a maximum collector-emitter breakdown voltage of 1200V and a maximum current collector of 450A.

  • Configuration: single chopper
  • Mounting Type: chassis mount
  • IGBT Type: trench field stop
  • Maximum Vce(on): 2.15V @ 15V, 450A
  • NTC Thermistor: No
  • Package/Case: module
  • Supplier Device Package: AG-62MM-1
  • Temperature Range: -40°C to 150°C
