Same model may have multiple batches, images only for reference.

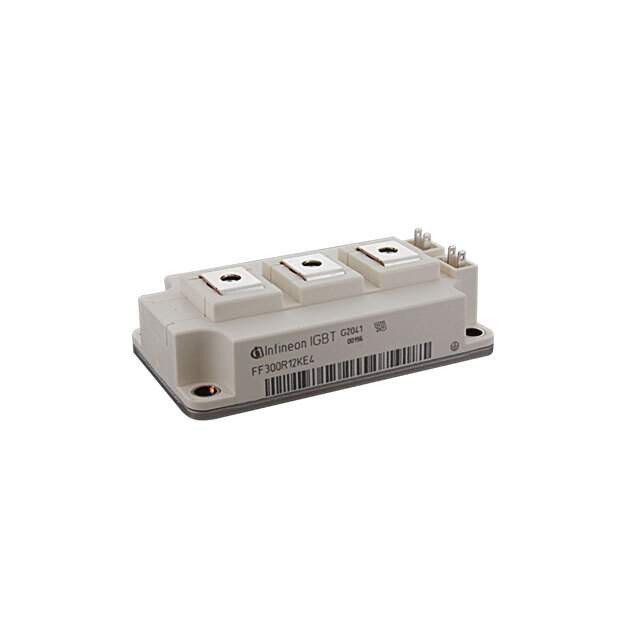

FF300R12KE4HOSA1 Real Image
Same model may have multiple batches, images only for reference.

FF300R12KE4HOSA1

Part No FF300R12KE4HOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MODULE VCES 600V 300A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon Technologies
IGBT Type Trench Field Stop
Configuration 2 Independent
Voltage - Collector Emitter Breakdown (Maximum) 1200V
Current - Collector (Ic) (Maximum) 460A
Power - Max 1600W
Vce(on) (Maximum) at Vge, Ic 2.15V at 15V, 300A
Current - Collector Cutoff (Maximum) 5mA
Input Capacitance (Cies) at Vce 19nF at 25V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package Module
Supplier Device Package Module
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814003-FF300R12KE4HOSA1
Ultra Librarian 3D Model Ultra Librarian FF300R12KE4HOSA1 CAD Model

Description

The Infineon Technologies FF300R12KE4HOSA1 is a module IGBT transistor designed for use in discrete semiconductor products.

  • Maximum Collector-Emitter Breakdown Voltage: 1200V
  • Maximum Collector Current: 460A
  • Maximum Power Output: 1600W
  • Configuration: 2 Independent IGBTs
  • Mounting Style: Chassis Mount
  • NTC Thermistor: Yes
  • Temperature Range: -40°C to 150°C
  • Popularity: Low
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 10
  • MSL Level: 1
