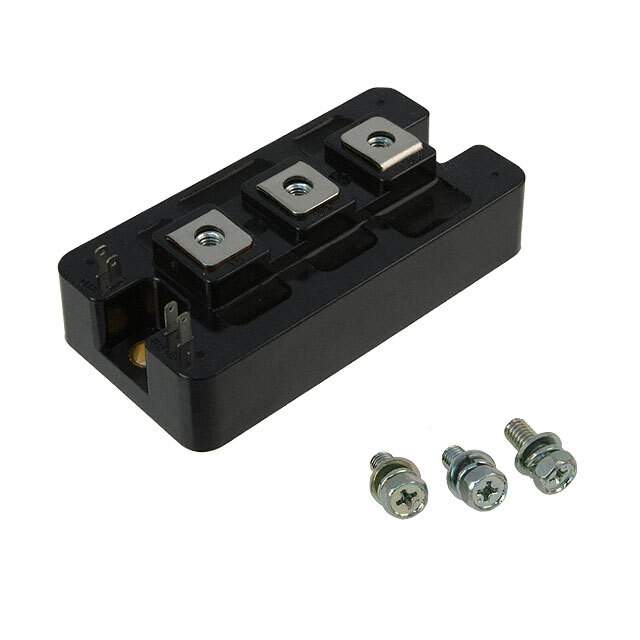

CM300DY-12H Real Image
Same model may have multiple batches, images only for reference.

CM300DY-12H

Part No CM300DY-12H
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD DUAL 600V 300A H SER
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Powerex Inc.
Status Obsolete(EOL)
Configuration Half Bridge
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 300A
Maximum Power Dissipation 1100W
Collector-emitter saturation voltage(Max) 2.8V @ 15V, 300A
Collector Cut-off Current(Max) 1mA
Input Capacitance (Cies) @ Vce 30nF @ 10V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Chassis Mount
Case / Package Module
Win Source Part Number 202636-CM300DY-12H
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CM300DY-12H CAD Model

Description

Product Description for CM300DY-12H

The CM300DY-12H is a high-performance IGBT module known for its efficiency and reliability in power electronics applications. It offers superior thermal conductivity and a robust design, making it ideal for various demanding environments.

Applications

  • Inverter systems
  • Power supply units
  • Motor drives
  • Renewable energy systems
  • Uninterruptible Power Supplies (UPS)

Features and Benefits

  • High current capacity of 300A
  • Voltage rating of 600V
  • Low switching losses
  • Easy to mount and use in various configurations
  • Outstanding thermal efficiency and durability

The CM300DY-12H is a versatile solution that caters to multiple industrial applications by providing efficiency upgrades to conventional systems.
