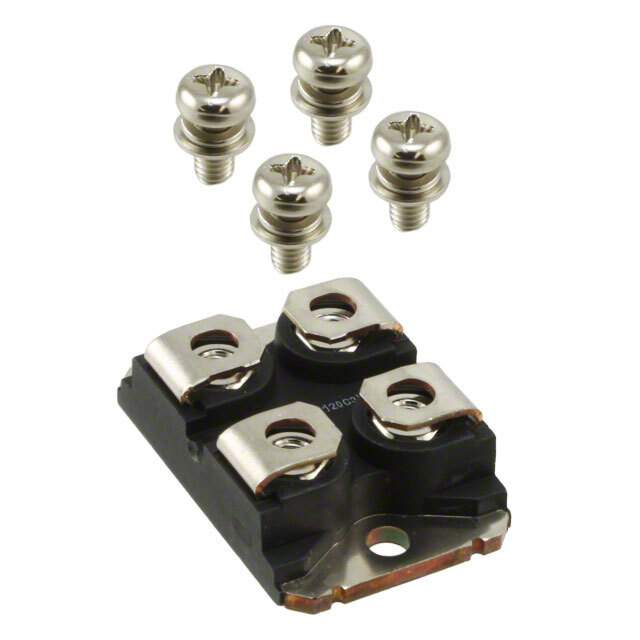

IXGN320N60A3 Real Image
Same model may have multiple batches, images only for reference.

IXGN320N60A3

Part No IXGN320N60A3
Manufacturer IXYS
Catalog IGBTs - Modules
Description 600V GenX3 IGBTs next generation 600V IGBTs for power conversion applications | IGBT 600V SOT-227B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
IGBT Type PT
Configuration Single
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 320A
Maximum Power 735W
Vce(on) (Maximum) at Vge, Ic 1.25V at 15V, 100A
Current - Collector Cutoff (Maximum) 150μA
Input Capacitance (Cies) at Vce 18nF at 25V
Input Standard
NTC Thermistor No
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package SOT-227-4, miniBLOC
Supplier Device Package SOT-227B
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Win Source Part Number 1191204-IXGN320N60A3
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IXGN320N60A3 CAD Model

Description

The IXYS IXGN320N60A3 is a chassis mount IGBT transistor with a maximum collector current of 320A and a maximum collector-emitter breakdown voltage of 600V.

  • Mounting Type: Chassis Mount.
  • Collector Current (Maximum): 320A.
  • Collector-Emitter Breakdown Voltage (Maximum): 600V.
  • Configuration: Single.
  • Package: SOT-227-4, miniBLOC.
  • Power Dissipation (Maximum): 735W.
  • Input Capacitance (Maximum): 18nF @ 25V.
  • Operating Temperature: -55°C to 150°C.
  • Family: IXYS IXGN320N60A3.
