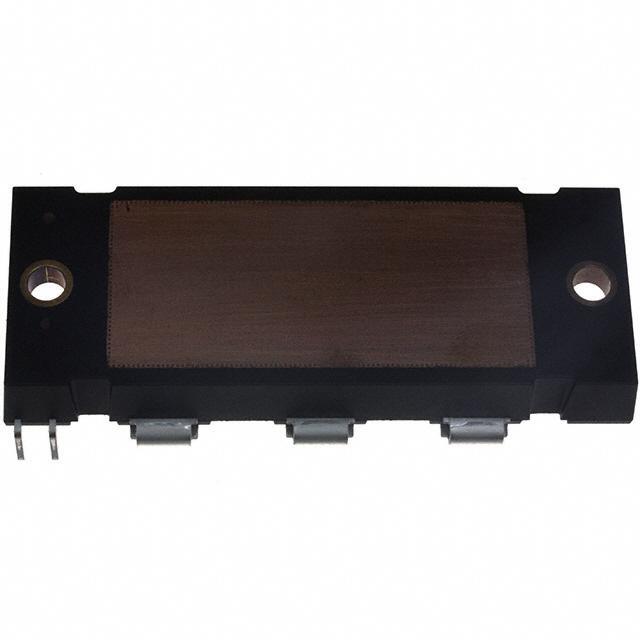

FP7G100US60 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FP7G100US60

Part No FP7G100US60
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Modules
Description MODULE SPM 600V 100A EPM7
Datasheet
FP7G100US60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Status Obsolete(EOL)
Configuration Half Bridge
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 100A
Maximum Power Dissipation 400W
Collector-emitter saturation voltage(Max) 2.8V @ 15V, 100A
Collector Cut-off Current(Max) 250μA
Input Capacitance (Cies) @ Vce 6.085nF @ 30V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Chassis Mount
Case / Package EPM7
Win Source Part Number 067360-FP7G100US60
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FP7G100US60 CAD Model

Description

This electronic component is manufactured by Fairchild/ON Semiconductor and has a Win Source Part Number of 067360-FP7G100US60. It is a discrete semiconductor product with a half-bridge configuration and standard input.

  • Maximum Current Collector: 100A
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 600V
  • Collector-Emitter Saturation Voltage: 2.8V at 15V, 100A
  • Supply and Demand Status: Limited
