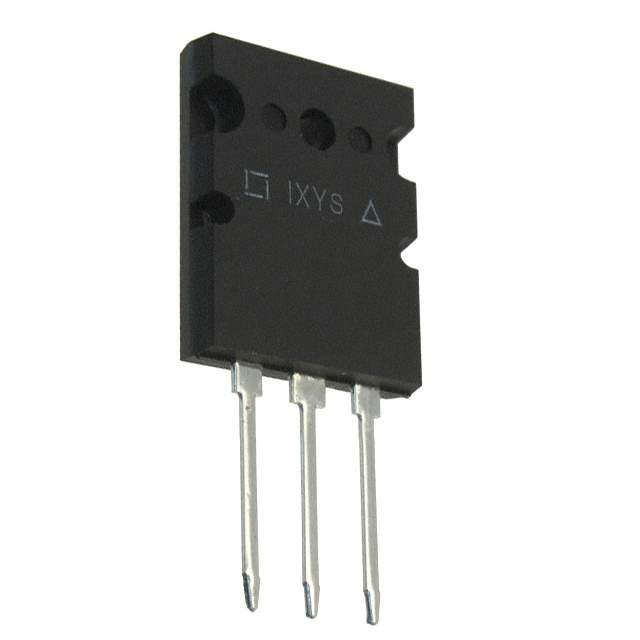

IXGK120N120A3 Real Image
Same model may have multiple batches, images only for reference.

IXGK120N120A3

Part No IXGK120N120A3
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 1200V 240A 830W TO264  /  IGBT PT 1200 V 240 A 830 W Through Hole TO-264 (IXGK)
Datasheet
IXGK120N120A3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr IXYS
Series GenX3™
Package Tube
IGBT Type PT
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 240 A
Current - Collector Pulsed (Icm) 600 A
Vce(on) (Max) @ Vge, Ic 2.2V @ 15V, 100A
Power - Max 830 W
Switching Energy 10mJ (on), 33mJ (off)
Input Type Standard
Gate Charge 420 nC
Td (on/off) @ 25°C 40ns/490ns
Test Condition 960V, 100A, 1Ohm, 15V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-264-3, TO-264AA
Supplier Device Package TO-264 (IXGK)
Base Product Number IXGK120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 622019
Standard Package 25
Win Source Part Number 1066188-IXGK120N120A3
Ultra Librarian 3D Model Ultra Librarian IXGK120N120A3 CAD Model

Description

The IXGK120N120A3 is a single IGBT transistor in the GenX3™ series of Discrete Semiconductor Products.

  • Package: TO-264-3, TO-264AA
  • Maximum Power: 830 W
  • Collector-Emitter Breakdown Voltage: 1200 V
  • Maximum Collector Current: 240 A
  • Switching Energy: 10mJ (on) and 33mJ (off)
  • Gate Charge: 420 nC
  • Td (on/off) @ 25°C: 40ns/490ns
  • Ideal for: applications such as motor drives, uninterruptible power supplies, and solar inverters.
