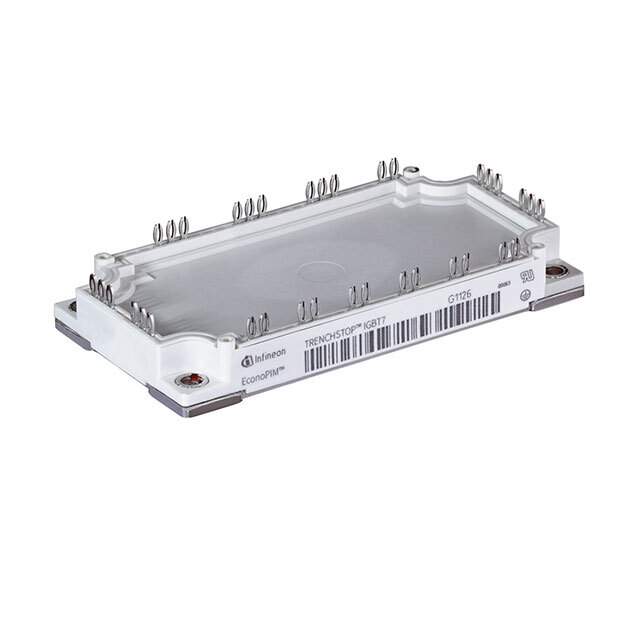

FP100R12N3T7BPSA1 Real Image
Same model may have multiple batches, images only for reference.

FP100R12N3T7BPSA1

Part No FP100R12N3T7BPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description LOW POWER ECONO AG-ECONO3B-711  /  IGBT Module Trench Field Stop Three Phase Inverter 1200 V 100 A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Package Tray
IGBT Type Trench Field Stop
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 100 A
Input Three Phase Bridge Rectifier
NTC Thermistor Yes
Base Product Number FP100R12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SP004145198,448-FP100R12N3T7BPSA1
Standard Package 10
Win Source Part Number 1201061-FP100R12N3T7BPSA1
Ultra Librarian 3D Model Ultra Librarian FP100R12N3T7BPSA1 CAD Model

Description

The Infineon Technologies FP100R12N3T7BPSA1 is a three-phase inverter configuration IGBT module with a voltage collector emitter breakdown of 1200 V and a maximum collector current of 100 A.

  • IGBT Type: Trench Field Stop
  • Voltage Collector Emitter Breakdown: 1200 V
  • Maximum Collector Current: 100 A
  • Features: NTC Thermistor
  • Application: Three-Phase Bridge Rectifiers
  • Package: Tray of 10 Units
  • ECCN: EAR99
  • Manufacturer: Infineon Technologies
  • Other Names: SP004145198, 448-FP100R12N3T7BPSA1
