Same model may have multiple batches, images only for reference.

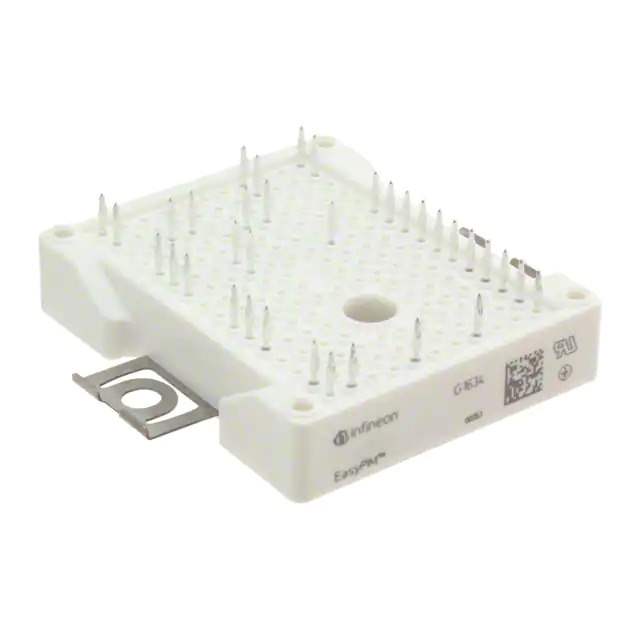

FP35R12W2T4B11BOMA1 Real Image
Same model may have multiple batches, images only for reference.

FP35R12W2T4B11BOMA1

Part No FP35R12W2T4B11BOMA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1200V 54A 215W / IGBT Module Trench Field Stop Three Phase Inverter 1200 V 54 A 215 W Chassis Mount Module
Datasheet
FP35R12W2T4B11BOMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Infineon Technologies
Package Tray
Product Status Active
IGBT Type Trench Field Stop
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 54 A
Power - Max 215 W
Vce(on) (Max) @ Vge, Ic 2.25V @ 15V, 35A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 2 nF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number FP35R12
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 846881-FP35R12W2T4B11BOMA1
Ultra Librarian 3D Model Ultra Librarian FP35R12W2T4B11BOMA1 CAD Model

Description

The 846881-FP35R12W2T4B11BOMA1 is an IGBT module designed for three-phase inverter configurations.

  • Power Rating: 215 W
  • Technology: Trench Field Stop
  • Collector-Emitter Breakdown Voltage: 1200 V
  • Maximum Collector Current: 54 A
  • Vce(on): 2.25V @ 15V, 35A
  • Mounting: Chassis Mount
  • Manufacturer: Infineon Technologies
  • Product Status: Active
  • Packaging: Tray
  • Standard Package: 15 pcs
