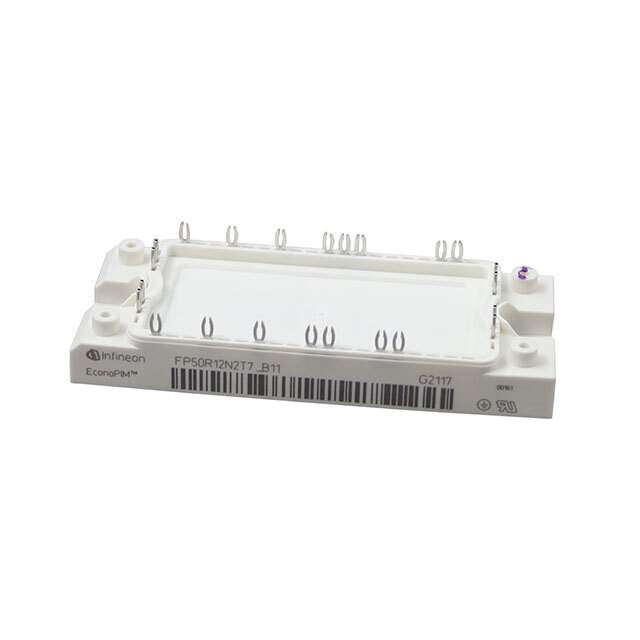

FP50R12N2T7B11BPSA1 Real Image
Same model may have multiple batches, images only for reference.

FP50R12N2T7B11BPSA1

Part No FP50R12N2T7B11BPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description LOW POWER ECONO AG-ECONO2B-711  /  IGBT Module Trench Field Stop Three Phase Inverter 1200 V 50 A 20 mW Chassis Mount AG-ECONO2B
Datasheet
FP50R12N2T7B11BPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Series EconoPIM™ 2
Package Tray
IGBT Type Trench Field Stop
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 50 A
Power - Max 20 mW
Vce(on) (Max) @ Vge, Ic 1.5V @ 15V, 50A
Current - Collector Cutoff (Max) 10 µA
Input Capacitance (Cies) @ Vce 11.1 nF @ 25 V
Input Three Phase Bridge Rectifier
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 175°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package AG-ECONO2B
Base Product Number FP50R12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 448-FP50R12N2T7B11BPSA1,SP005434966
Standard Package 10
Win Source Part Number 1013916-FP50R12N2T7B11BPSA1
Ultra Librarian 3D Model Ultra Librarian FP50R12N2T7B11BPSA1 CAD Model

Description

The FP50R12N2T7B11BPSA1 is a three-phase inverter IGBT module from Infineon Technologies.

  • Maximum Collector Current: 50A
  • Collector-Emitter Voltage Breakdown: 1200V
  • IGBT Technology: Trench Field Stop
  • Features: Low switching losses and high efficiency
  • Built-in: NTC thermistor for temperature sensing
  • Package: Module
  • Suitable for: Various power electronic applications, especially in automotive applications
  • High Temperature Range of Operation: Yes
