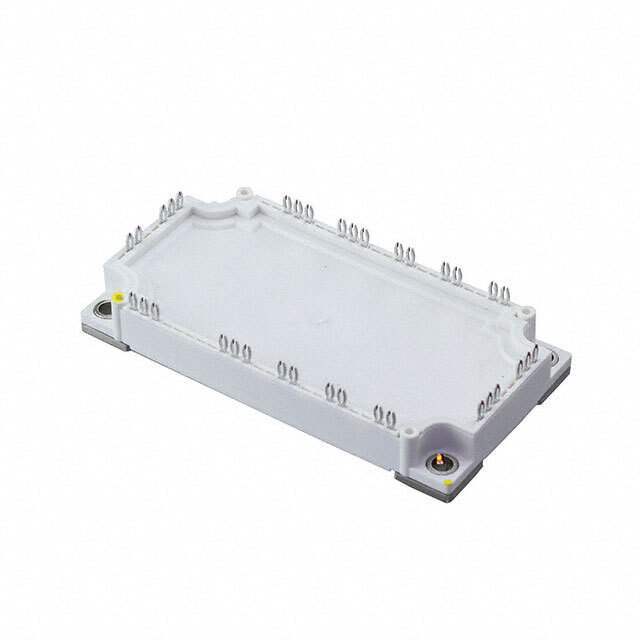

Same model may have multiple batches, images only for reference.
FP75R12KT4B11BOSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

FP75R12KT4B11BOSA1

Part No FP75R12KT4B11BOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1200V 75A 385W
Datasheet
FP75R12KT4B11BOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202581-FP75R12KT4B11BOSA1
Manufacturer Infineon Technologies
Category Discrete Semiconductor Products -Transistors IGBTs- IGBT Modules
Package Tray
Product Status Active
IGBT Type Trench Field Stop
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 75 A
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Ultra Librarian 3D Model Ultra Librarian FP75R12KT4B11BOSA1 CAD Model

Description

The Infineon Technologies IGBT Module is designed for three-phase inverter applications.

  • Application: Three-Phase Inverter
  • Maximum Collector-Emitter Breakdown Voltage: 1200V
  • Maximum Collector Current (Ic): 75A
  • Design: Trench Field Stop
  • Installation: Chassis Mount
  • Operating Temperature Range: -40°C to 150°C
  • Series: IGBTs
  • Package: Tray
