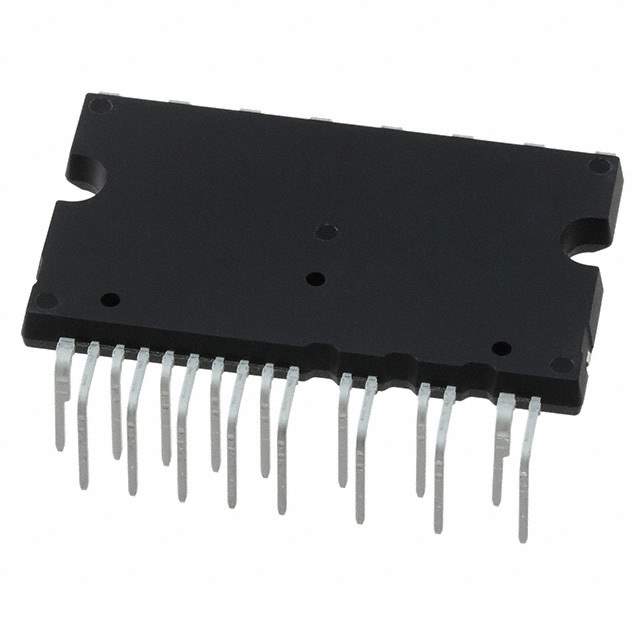

The IGCM04F60GA is an intelligent power module (IPM) manufactured by Infineon Technologies. It integrates multiple power semiconductor devices and driver circuitry into a single package, simplifying the design and assembly of motor drives and other power conversion applications.

Applications:

• Industrial motor drives
• Servo drives
• Air conditioning systems
• Washing machines
• General-purpose inverters

Features:

• 600V / 4A, 3-phase IGBT inverter including driver IC
• Integrated bootstrap circuit for high-side gate drive
• Over-current protection
• Short-circuit protection
• Under-voltage lockout protection
• Temperature monitoring
• Open-emitter outputs for flexible inverter control

Benefits:

• Reduced system size and complexity
• Improved system reliability
• Simplified design and assembly
• Enhanced protection features for robust operation
• Lower overall system cost
• Faster time-to-market

Additional Details:

The IGCM04F60GA IPM is designed for ease of use and provides a compact, efficient solution for driving small to medium power motors. The integrated protection features ensure safe and reliable operation under various fault conditions. The device is available in a compact package that minimizes board space requirements. Detailed electrical characteristics, switching performance, and thermal resistance information can be found in the Infineon datasheet. The integrated bootstrap diodes simplify the high-side gate drive circuitry, reducing the number of external components. The open-emitter outputs allow for flexible control of the inverter, enabling various modulation strategies. This module is a good choice for applications requiring a compact, reliable, and easy-to-use power inverter solution.
