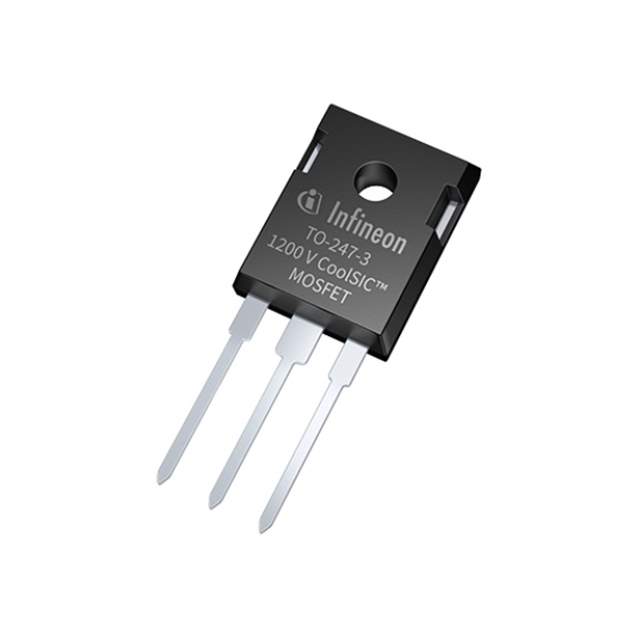

IMW120R045M1XKSA1 Real Image
Same model may have multiple batches, images only for reference.

IMW120R045M1XKSA1

Part No IMW120R045M1XKSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description SICFET N-CH 1.2KV 52A TO247-3  /  N-Channel 1200 V 52A (Tc) 228W (Tc) Through Hole PG-TO247-3-41
Datasheet
IMW120R045M1XKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series CoolSiC™
Package Tube
Product Status Not For New Designs
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V
Current - Continuous Drain (Id) @ 25°C 52A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 15V
Rds On (Max) @ Id, Vgs 59mOhm @ 20A, 15V
Vgs(th) (Max) @ Id 5.7V @ 10mA
Gate Charge (Qg) (Max) @ Vgs 52 nC @ 15 V
Vgs (Max) +20V, -10V
Input Capacitance (Ciss) (Max) @ Vds 1900 pF @ 800 V
Power Dissipation (Max) 228W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package PG-TO247-3-41
Package / Case TO-247-3
Base Product Number IMW120
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SP001346254
Standard Package 30
Win Source Part Number 1065101-IMW120R045M1XKSA1
Ultra Librarian 3D Model Ultra Librarian IMW120R045M1XKSA1 CAD Model

Description

The 1065101-IMW120R045M1XKSA1 is a high-performance N-Channel SiCFET transistor that is designed for use in a variety of applications.

  • Maximum Voltage Breakdown: 1200 V
  • Continuous Drain Current: 52A (Tc)
  • Rds On: 59mOhm @ 20A, 15V
  • Temperature Range: -55°C ~ 175°C (TJ)
  • Gate Charge: 52 nC @ 15 V
  • Package: TO-247-3
  • Alternative Part: IMW120R045M1XKSA1IMW120R045M1
