Same model may have multiple batches, images only for reference.

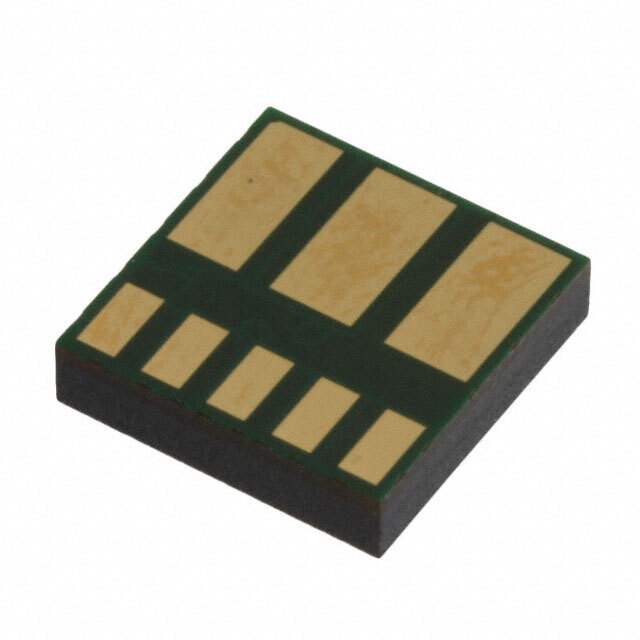

IP2005AP Real Image
Same model may have multiple batches, images only for reference.

IP2005AP

Part No IP2005AP
Manufacturer Infineon Technologies
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK ADJ 40A SYNC LGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tray
Status Obsolete(EOL)
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 6.5V
Maximum Input Voltage 13.2V
Nominal Output Voltage (Min/Fixed) 0.8V
Maximum Output Voltage 5.5V
Output Current 40A
Frequency - Switching 250kHz to 1.5MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LGA (7.7x7.7)
Win Source Part Number 068902-IP2005AP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IP2005AP CAD Model

Description

The Infineon Technologies 068902-IP2005AP is a buck topology adjustable output DC-DC converter designed for use in integrated circuits.

  • Topology: Buck
  • Frequency Switching Range: 250kHz to 1.5MHz
  • Rectifier Type: Synchronous rectifier
  • Maximum Input Voltage: 13.2V
  • Nominal Output Voltage (min/fixed): 0.8V
  • Maximum Output Voltage: 5.5V
  • Minimum Input Voltage: 6.5V
  • Mounting Technology: SMD (SMT)
  • Package: LGA (7.7x7.7)
  • Supply and Demand: Limited
