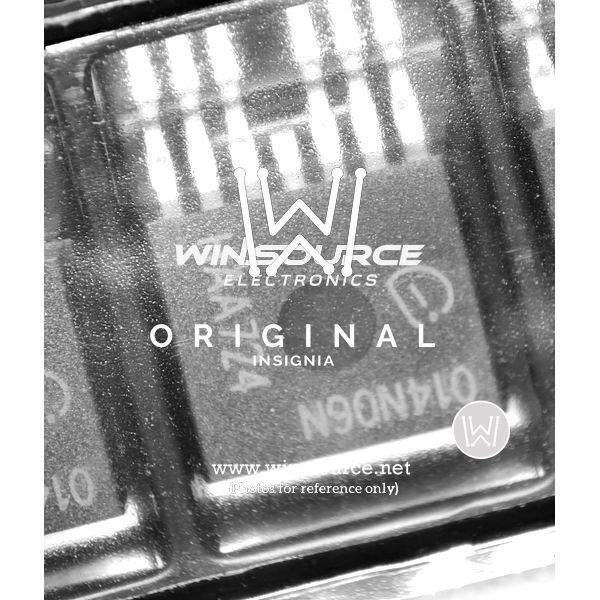

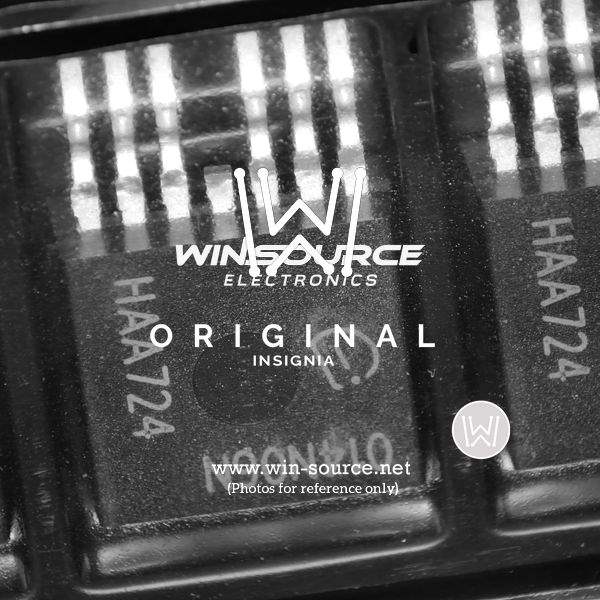

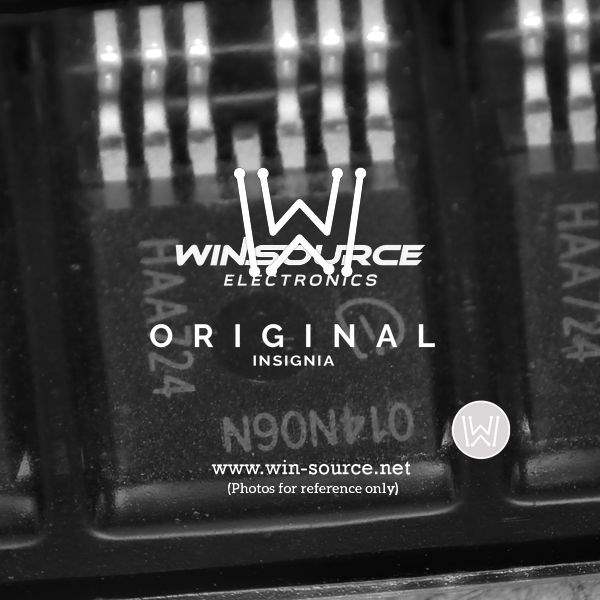

The IPB014N06N is a CoolMOS™ Power MOSFET from Infineon Technologies. This N-channel MOSFET is designed for high-efficiency switching applications, offering a combination of low on-resistance (Rds(on)) and fast switching speeds.

Applications:

• Synchronous Rectification: In switched-mode power supplies (SMPS) to improve efficiency.
• DC-DC Converters: Used in a wide range of DC-DC conversion applications, including telecom and server power supplies.
• Motor Control: Suitable for motor control applications where efficiency and reliability are critical.
• Automotive Applications: Such as electronic power steering (EPS), braking systems, and other automotive power management circuits.
• Solar Inverters: For efficient DC-AC conversion in solar power systems.

Features:

• Low On-Resistance (Rds(on)): Minimizes conduction losses, improving overall efficiency.
• Fast Switching Speed: Reduces switching losses, contributing to higher efficiency and allowing for higher switching frequencies.
• Avalanche Rated: Provides robustness and reliability in demanding applications.
• Logic Level Compatibility: Can be driven directly by microcontrollers and other logic devices.
• Halogen-Free: Meets environmental regulations.
• Pb-Free Plating: Compliant with RoHS standards.

Benefits:

• High Efficiency: The low Rds(on) and fast switching speed result in high efficiency, reducing power consumption and heat dissipation.
• Improved Thermal Performance: Allows for operation at higher power levels without exceeding thermal limits.
• Enhanced Reliability: The avalanche rating and robust design ensure reliable operation in demanding environments.
• Simplified Design: The logic level compatibility simplifies gate drive circuitry.
• Reduced System Cost: Lower power losses translate to smaller heat sinks and lower overall system cost.

Additional Details:

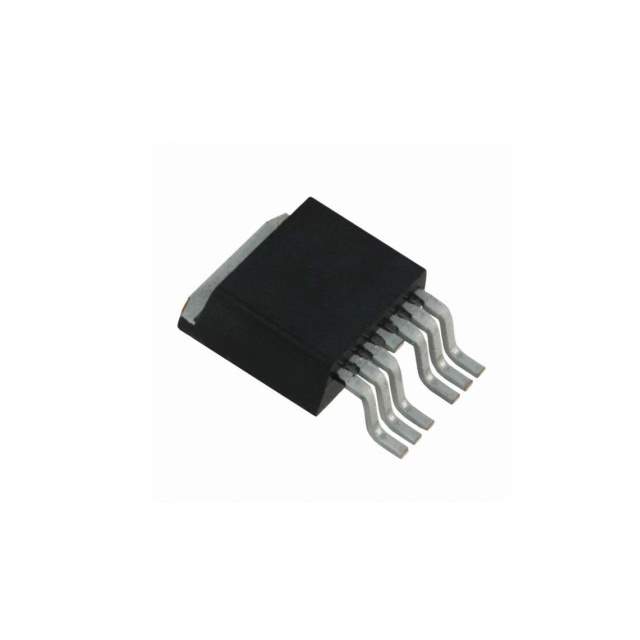

The IPB014N06N typically features a voltage rating of 60V and a continuous drain current (Id) of over 100A (depending on the case temperature). It's available in a TO-263 (D2PAK) package, designed for surface mounting. The gate threshold voltage is typically between 2V and 4V, making it compatible with logic-level gate drives. Detailed specifications, including thermal resistance, gate charge, and reverse recovery characteristics, can be found in the Infineon datasheet. Proper PCB layout is important for minimizing parasitic inductance and optimizing switching performance.
