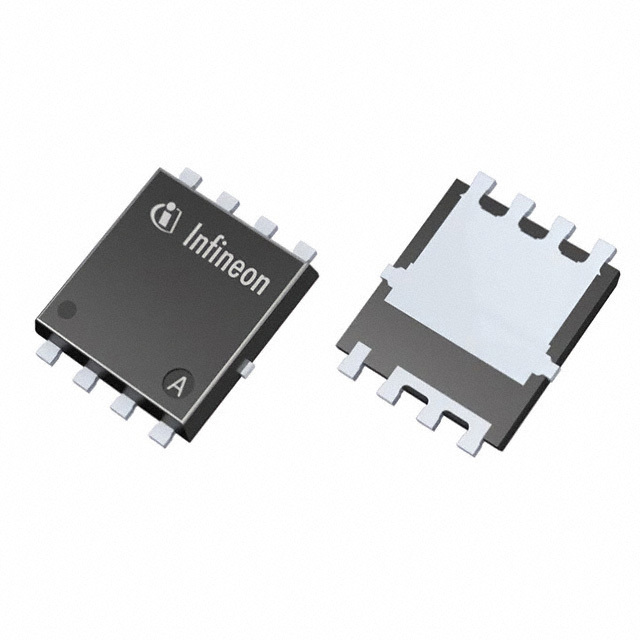

Same model may have multiple batches, images only for reference.
IPC100N04S5L1R9ATMA1
Same model may have multiple batches, images only for reference.

IPC100N04S5L1R9ATMA1

Part No IPC100N04S5L1R9ATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 100A 8TDSON-34
Datasheet
IPC100N04S5L1R9ATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 51 Weeks
Features N-Channel 40 V 100A (Tc) 100W (Tc) Surface Mount PG-TDSON-8-34
Manufacturer Infineon Technologies
Series OptiMOS™
Package Reel - TR
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Surface Mount
Package 8-PowerTDFN
Case / Package PG-TDSON-8-34
Family Name IPC100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number IPC100N04S5L1R9ATMA1TR, IPC100N04S5L1R9ATMA1CT, SP001360570, IPC100N04S5L1R9ATMA1DKR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 874755-IPC100N04S5L1R9ATMA1
Ultra Librarian 3D Model Ultra Librarian IPC100N04S5L1R9ATMA1 CAD Model

Description

Infineon Technologies offers the IPC100N04S5L1R9ATMA1, a part of the OptiMOS™ series.

  • Series: OptiMOS™
  • Channel Type: N-channel MOSFET
  • Voltage Rating: 40V
  • Current Rating: 100A
  • Power Rating: 100W
  • Package: PG-TDSON-8-34
  • Mounting: Surface Mount
  • Maximum Operating Temperature: 175°C
  • Operating Temperature Range: -55°C to 175°C
  • Connectivity: CANbus, I2C, SCI, SPI
  • Peripherals: PWM, WDT
