The Infineon Technologies IPC70N04S5L4R2ATMA1 is an N-Channel MOSFET transistor suitable for use in discrete semiconductor products, specifically for transistors - FETs, MOSFETs - Single.

• Drain to Source Voltage (Vdss): 40 V
• Continuous Drain Current (Id): 70A (Tc) @ 25°C
• Maximum Rds On: 4.2mOhm @ 35A, 10V
• Maximum Vgs(th): 2V @ 17μA

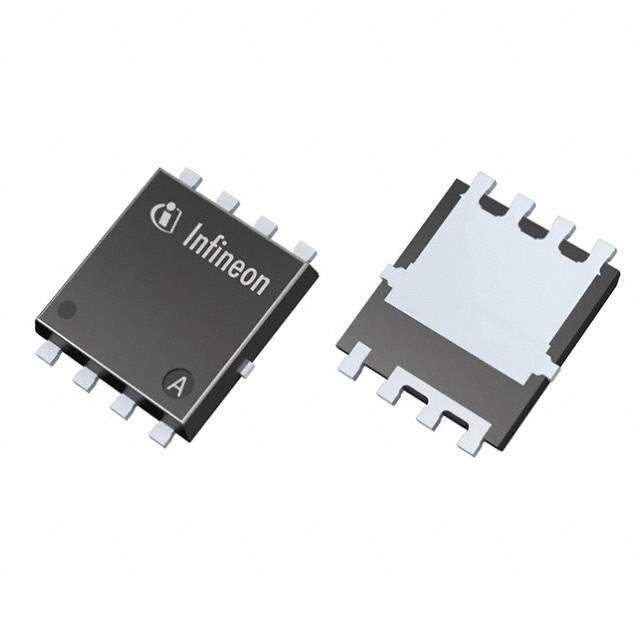

• Package: PG-TDSON-8-34
• Maximum Power Dissipation: 50W (Tc)
• Gate Charge (Qg): 30 nC @ 10 V
• Input Capacitance (Ciss): 1600 pF @ 25 V
• Temperature Range: -55°C ~ 175°C (TJ)
• Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
• ROHS3 Compliant: Yes
• ECCN: EAR99
