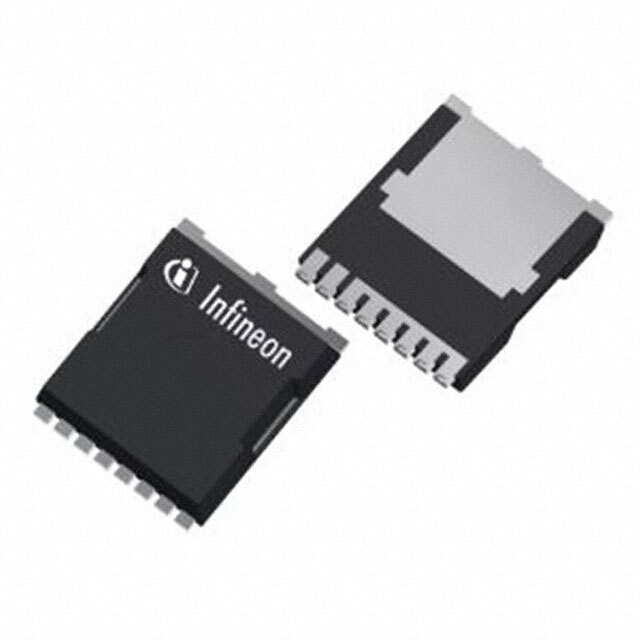

Same model may have multiple batches, images only for reference.

IPT65R033G7XTMA1

Name: IPT65R033G7XTMA1
Brand: Infineon Technologies
SKU: 1065369
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IPT65R033G7XTMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 650V 69A 8HSOF / N-Channel 650 V 69A (Tc) 391W (Tc) Surface Mount PG-HSOF-8-2
Datasheet	IPT65R033G7XTMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	CoolMOS™ C7
Package	Tape & Reel
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	69A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	33mOhm @ 28.9A, 10V
Vgs(th) (Max) @ Id	4V @ 1.44mA
Gate Charge (Qg) (Max) @ Vgs	110 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5000 pF @ 400 V
Power Dissipation (Max)	391W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PG-HSOF-8-2
Package / Case	8-PowerSFN
Base Product Number	IPT65R033
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	IPT65R033G7XTMA1CT,2156-IPT65R033G7XTMA1,IPT65R033G7XTMA1-ND,IPT65R033G7XTMA1DKR,SP001456202,INFINFIPT65R033G7XTMA1,IPT65R033G7XTMA1TR
Standard Package	2,000
Win Source Part Number	1065369-IPT65R033G7XTMA1
Ultra Librarian 3D Model	Ultra Librarian IPT65R033G7XTMA1 CAD Model

Alternative Products

Description

The Infineon Technologies IPT65R033G7XTMA1 is a N-channel MOSFET transistor that is a part of the CoolMOS™ C7 series.

Drain to Source Voltage: 650 V
Current Continuous Drain: 69A (Tc) @ 25°C
Rds On (Max) @ Id, Vgs: 33mOhm @ 28.9A, 10V
Vgs(th) (Max) @ Id: 4V @ 1.44mA
Power Dissipation: 391W (Tc)
Gate Charge (Qg) (Max) @ Vgs: 110 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 5000 pF @ 400 V
Product Classification: EAR99
