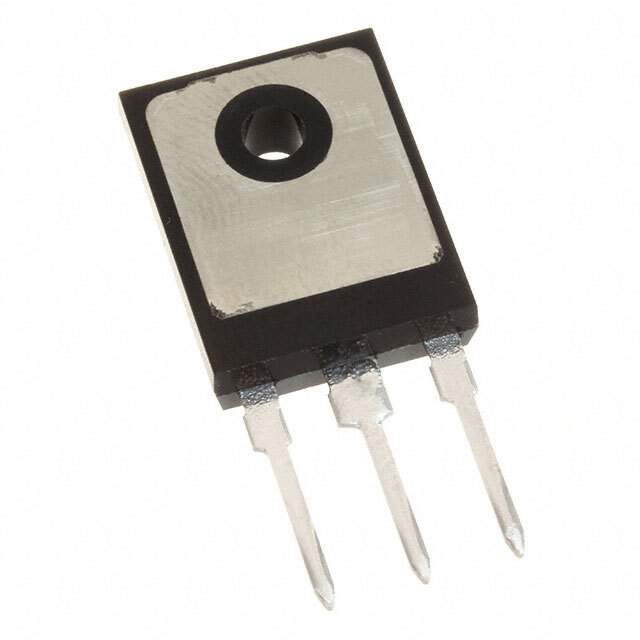

The CoolMOS™ C7 series MOSFET, part number 1065387-IPW65R125C7XKSA1, is a N-channel FET with a drain to source voltage of 650 V and continuous drain current of 18A (Tc) @ 25°C.

• Rds On: 125mOhm @ 8.9A, 10V
• Power Dissipation: Up to 101W (Tc)
• Mounting: Through hole in a TO-247-3 package
• Gate Charge: 35 nC @ 10 V
• Input Capacitance: 1670 pF @ 400 V
• Gate-Source Voltage: ±20V
• Temperature Range: -55°C to 150°C (TJ)
• Applications: Ideal for use in applications like power supplies, motor control, and DC-DC converters
