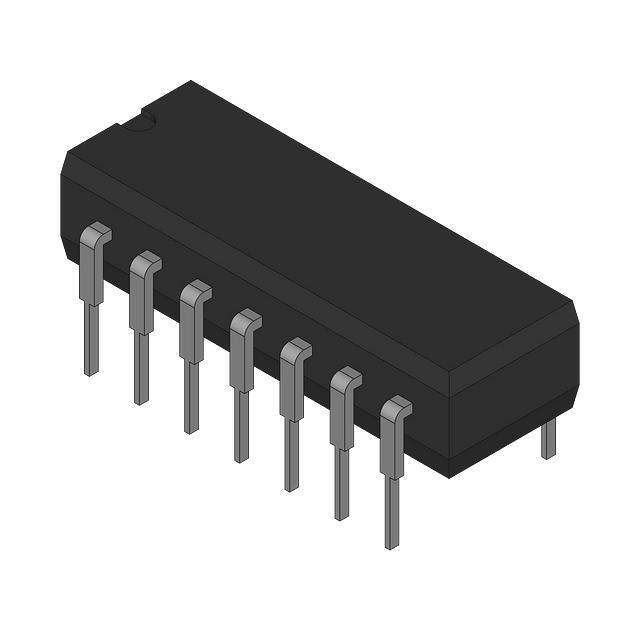

IR21814PBF Real Image
Same model may have multiple batches, images only for reference.

IR21814PBF

Part No IR21814PBF
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC DRIVER HIGH/LOW SIDE 14DIP
Datasheet
IR21814PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, N-Channel MOSFET
Supply Voltage - Operating 10 V to 20 V
Logic Voltage - VIL, VIH 0.8V, 2.7V
Current - Peak Output (Source, Sink) 1.9A, 2.3A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 600V
Rise and Fall Time 40ns, 20ns
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole
Case / Package 14-DIP
Win Source Part Number 069174-IR21814PBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IR21814PBF CAD Model

Description

The Infineon Technologies IR21814PBF is a half-bridge gate driver IC that is designed for use in a range of electronic devices.

  • Channels: Two independent channels
  • Gate Compatibility: IGBTs and N-Channel MOSFETs
  • High-Side Voltage: Up to 600V
  • Peak Output Current (Source): 1.9A
  • Peak Output Current (Sink): 2.3A
  • Package: 14-DIP
  • Temperature Range: -40°C to 150°C
  • Applications: Motor control, power supplies, and lighting
