IRAMS10UP60A Infineon Technologies IRAMS10UP60A label picture 2
Same model may have multiple batches, images only for reference.
IRAMS10UP60A Infineon Technologies IRAMS10UP60A label picture 2
IRAMS10UP60A Infineon Technologies IRAMS10UP60A label picture 2
Same model may have multiple batches, images only for reference.

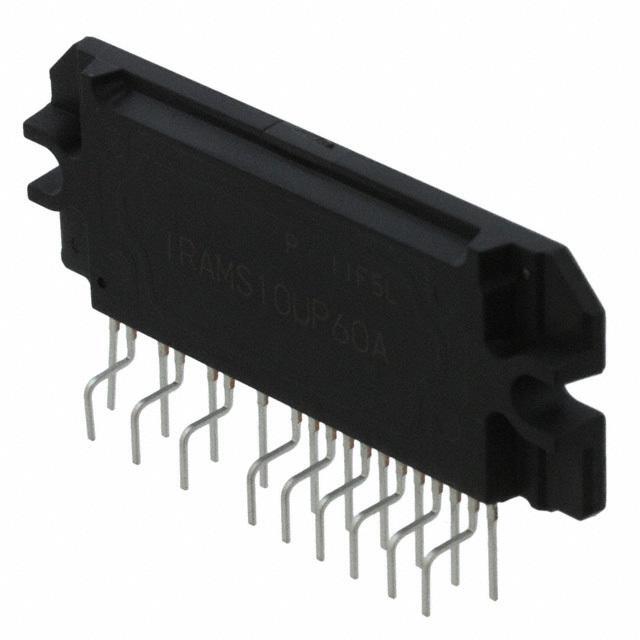

IRAMS10UP60A

Part No IRAMS10UP60A
Manufacturer Infineon Technologies
Catalog Power Drivers - Modules
Description IPM IGBT 600V 10A 19-Pin SIP-1 Tube / IC MOD PWR INTELLIGENT 10A 600V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon Technologies
Standard Package 80
Category Discrete Semiconductor Products
Family Power Drivers - Modules
Series iMOTION
Type IGBT
Configuration 3 Phase
Current 10A
Voltage 600V
Voltage - Isolation 2000Vrms
Package PCB Module
Win Source Part Number 069231-IRAMS10UP60A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name IRAMS10UP60
Introduction Date June 24, 2003
ECCN EAR99
Country of Origin Vietnam
Halogen Free Not Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IRAMS10UP60A CAD Model

Description

The IRAMS10UP60A is an electronic component manufactured by Infineon Technologies.

  • Configuration: 3 phase
  • Supply and Demand Status: Limited
  • Standard Package: 80

This component is designed for use in various applications and has a configuration of 3 phase.
