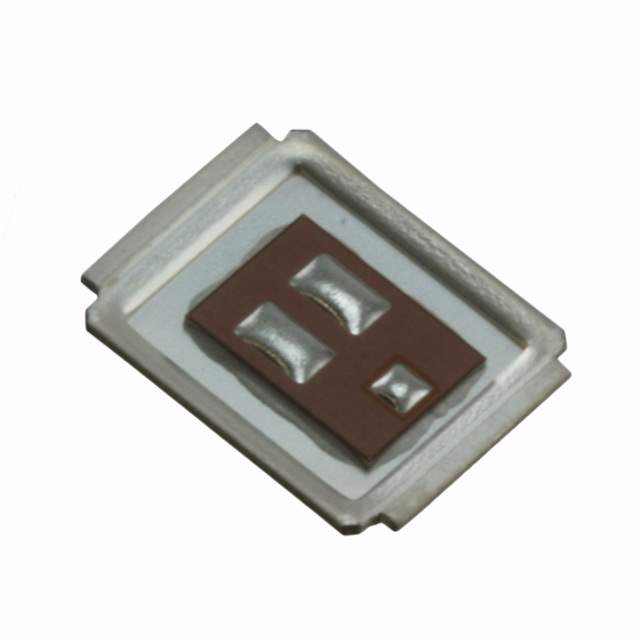

IRF6795MTR1PBF Real Image
Same model may have multiple batches, images only for reference.

IRF6795MTR1PBF

Part No IRF6795MTR1PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 25V 32A DIRECTFET
Datasheet
IRF6795MTR1PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 25V
Continuous Drain Current at 25°C 32A (Ta), 160A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.35V @ 100μA
Max Gate Charge 53nC @ 4.5V
Max Input Capacitance 4280pF @ 13V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.8W (Ta), 75W (Tc)
Maximum Rds On at Id,Vgs 1.8 mOhm @ 32A, 10V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DIRECTFET MX
Dimension DirectFET Isometric MX
Win Source Part Number 1046569-IRF6795MTR1PBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRF6795MTR1PBF CAD Model

Description

The Infineon Technologies IRF6795MTR1PBF is a N-Channel MOSFET that is designed to handle high power dissipation of up to 2.8W (Ta) and 75W (Tc).

  • Drain-Source Breakdown Voltage: 25V
  • Continuous Drain Current: 32A (Ta), 160A (Tc)
  • Gate-Source Threshold Voltage: 2.35V @ 100μA
  • Maximum Gate Charge: 53nC @ 4.5V
  • Maximum Input Capacitance: 4280pF @ 13V
  • Package: DirectFET MX
  • Mounting Type: SMD (SMT)
  • Supply and Demand Status: Balanced
