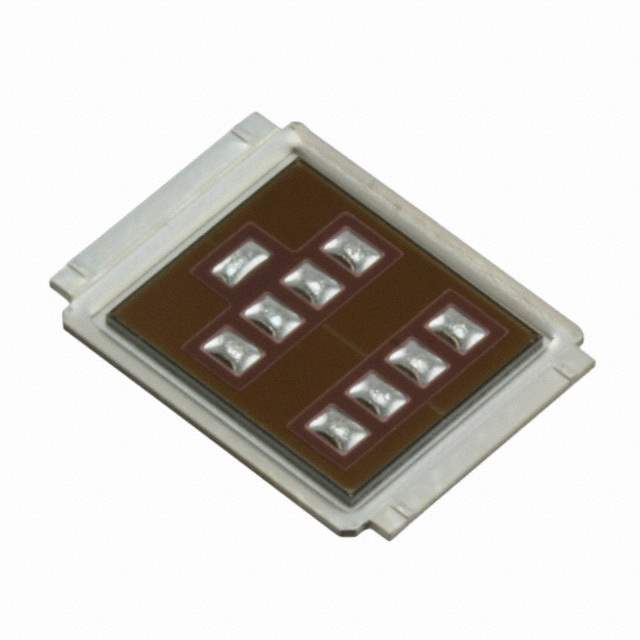

IRF7759L2TR1PBF

Name: IRF7759L2TR1PBF
Brand: Infineon Technologies
SKU: 1124691
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRF7759L2TR1PBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 75V 26A DIRECTFET / N-Channel 75 V 26A (Ta), 375A (Tc) 3.3W (Ta), 125W (Tc) Surface Mount DirectFET™ Isometric L8
Datasheet	IRF7759L2TR1PBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	HEXFET®
Package	Tape & Reel
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	26A (Ta), 375A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.3mOhm @ 96A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	300 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	12222 pF @ 25 V
Power Dissipation (Max)	3.3W (Ta), 125W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	DirectFET™ Isometric L8
Package / Case	DirectFET™ Isometric L8
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	IRF7759L2TR1PBFCT,IRF7759L2TR1PBFDKR,SP001566426,IRF7759L2TR1PBFTR
Standard Package	1,000
Win Source Part Number	1124691-IRF7759L2TR1PBF
Ultra Librarian 3D Model	Ultra Librarian IRF7759L2TR1PBF CAD Model

Alternative Products

Description

The IRF7759L2TR1PBF is a MOSFET transistor that belongs to the Transistors - FETs, MOSFETs - Single category.

FET Type: N-Channel
Vdss: 75 V
Id @ 25°C: 26A (Ta), 375A (Tc)
Rds On (Max) @ Id, Vgs: 2.3mOhm @ 96A, 10V
Vgs(th) (Max) @ Id: 4V @ 250µA
Qg (Max) @ Vgs: 300 nC @ 10 V
Power Dissipation (Max): 3.3W (Ta), 125W (Tc)
Ciss (Max) @ Vds: 12222 pF @ 25 V
Operating Temperature: -55°C to 175°C
Package: DirectFET™ Isometric L8
