Same model may have multiple batches, images only for reference.

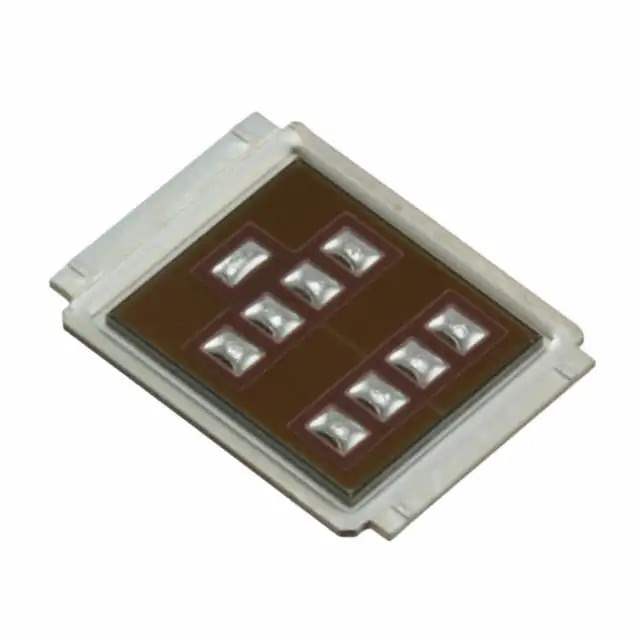

IRF7769L2TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRF7769L2TRPBF

Part No IRF7769L2TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 375A DIRECTFET
Datasheet
IRF7769L2TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Infineon Technologies
Series HEXFET®
Package Tape & Reel
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 375A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 3.5mOhm @ 74A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 300 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 11560 pF @ 25 V
Power Dissipation (Max) 3.3W (Ta), 125W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package DirectFET™ Isometric L8
Package / Case DirectFET™ Isometric L8
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 851170-IRF7769L2TRPBF
Ultra Librarian 3D Model Ultra Librarian IRF7769L2TRPBF CAD Model

Description

The 851170-IRF7769L2TRPBF is a N-Channel MOSFET transistor from Infineon Technologies.

  • FET Type: MOSFET N-Channel
  • Technology: HEXFET
  • Vdss (Drain to Source Voltage): 100V
  • Id (Current - Continuous Drain): 375A
  • Rds On (Max) @ Id, Vgs: 3.5mOhm @ 74A, 10V
  • Qg (Gate Charge) @ Vgs: 300 nC @ 10V
  • Ciss (Input Capacitance) @ Vds: 11560 pF @ 25V
  • Operating Temperature: -55°C ~ 175°C
  • Mounting Type: Surface Mount
  • Package / Case: DirectFET™ Isometric L8
