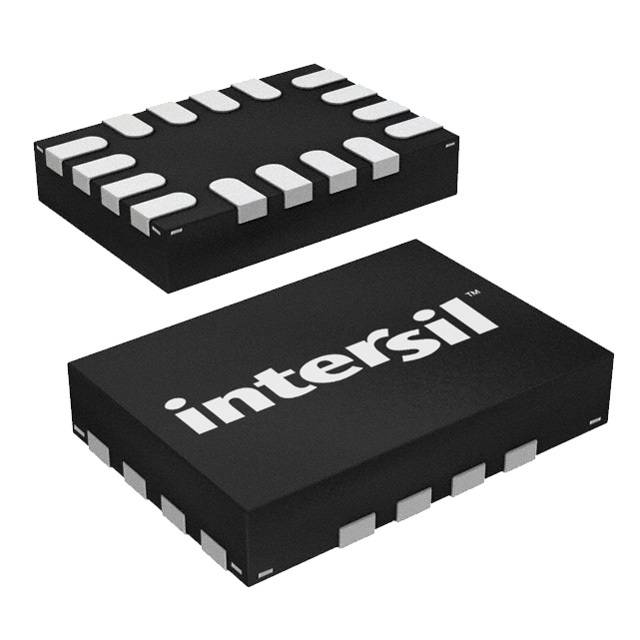

Same model may have multiple batches, images only for reference.
ISL54056IRUZ-T Intersil
Same model may have multiple batches, images only for reference.

ISL54056IRUZ-T

Part No ISL54056IRUZ-T
Manufacturer Intersil
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH QUAD SPDT 16UTQFN
Datasheet
ISL54056IRUZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Obsolete(EOL)
Switch Circuit SPDT
Number of Circuits 4
Max On Resistance 550 mOhm
Channel-to-Channel Matching (ΔRon) 50 mOhm
Single Supply Voltage (V+) 1.65 V to 4.5 V
Max Switch Time (Ton,Toff) 33ns, 16ns
Charge Injection 248pC
Channel Capacitance(CS off, CD off) 38pF
Max Leakage Current (IS off) 70nA
Crosstalk -85dB @ 100kHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-UTQFN (2.6x1.8)
Win Source Part Number 069905-ISL54056IRUZ-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISL54056IRUZ-T CAD Model

Description

The Intersil ISL54056IRUZ-T is an electronic component that is designed for specific applications. It is manufactured by Intersil, a leading brand in the electronics industry. The supply and demand status of this product is balanced. This electronic component is perfect for applications that require a limited supply of electronic components.
