Same model may have multiple batches, images only for reference.

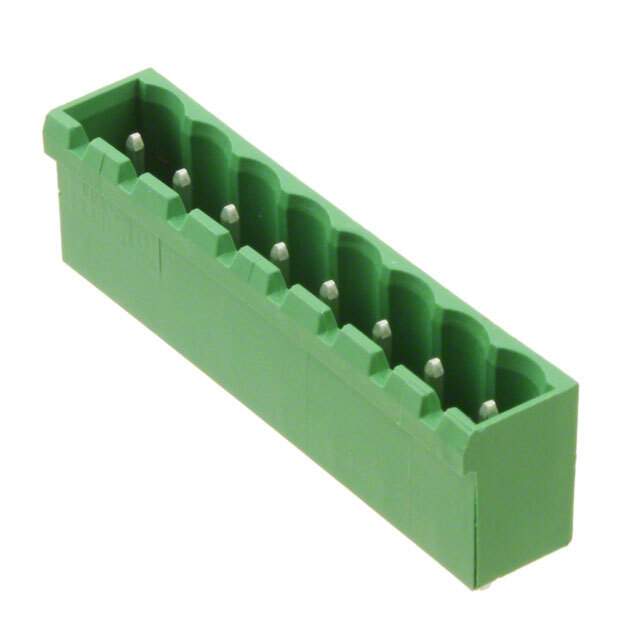

1755794 Real Image
Same model may have multiple batches, images only for reference.

1755794

Part No 1755794
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 8POS VERT 5.08MM / 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Positions Per Level 8
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Termination Style Solder
Mounting Through Hole
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 12 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.154" (3.90mm)
Insulation Height 0.472" (12.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 277-1156,MSTBVA 2.5/8-G-5.08,MSTBVA2,5/8-G-5,08
Standard Package 100
Win Source Part Number 1332334-1755794
Ultra Librarian 3D Model Ultra Librarian 1755794 CAD Model

Description

The Phoenix Contact 1755794 is a shrouded header with male pins and 8 positions per level.

  • Shrouded: Yes
  • Pins: Male
  • Positions per Level: 8
  • Pitch: 0.200 inches (5.08mm)
  • Orientation: Vertical Header
  • Current Rating: 12A
  • Voltage Rating (IEC): 630V
  • Voltage Rating (UL): 300V
  • Material: Polyamide (PA) nylon
  • Flammability Rating: UL94 V-0
  • Standard Package: 100
  • Mounting: Through Hole
  • Supply and Demand: Limited
