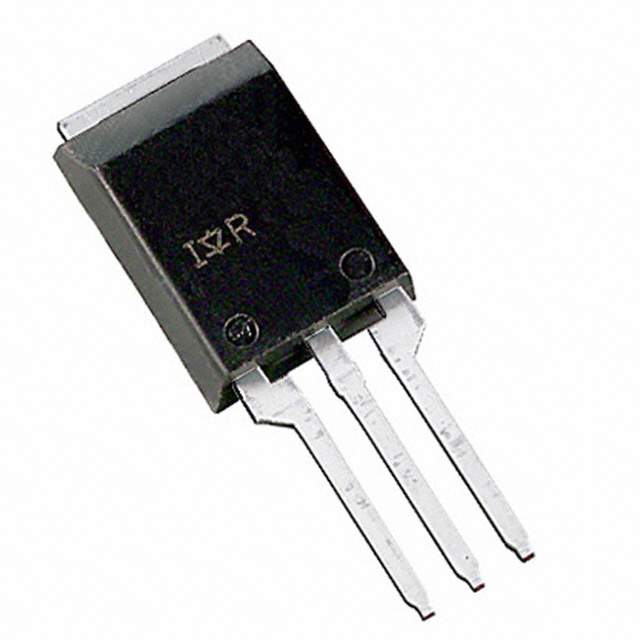

Same model may have multiple batches, images only for reference.

IRFBA1404P

Name: IRFBA1404P
Brand: Infineon Technologies
SKU: 604829
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IRFBA1404P
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	Power MOSFET(Vdss=40V, Rds(on)=3.7mohm, Id=206A) \| MOSFET N-CH 40V 206A SUPER-220
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Tube
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	40V
Id - Continuous Drain Current	206A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	3.7mOhm at 95A, 10V
Gate Source Voltage(th) (Maximum) at Id	4V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	200nC at 10V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	7360pF at 25V
Power Dissipation (Maximum)	300W
Temperature Range - Operating	-40°C ~ 175°C
Mounting Style	Through Hole
Supplier Device Package	SUPER-220 (TO-273AA)
Manufacturer Package	Super-220-3 (Straight Leads)
Manufacturer Pack Quantity	50
MSL Level	1 (Unlimited)
Win Source Part Number	1187517-IRFBA1404P
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IRFBA1404P CAD Model

Alternative Products

Description

The IRFBA1404P is a N-Channel MOSFET transistor manufactured by Infineon Technologies.

Drain-Source Voltage: 40V
Continuous Drain Current: 206A
Package Type: Through-Hole
Power Dissipation: 300W
Popularity: Medium
Supply and Demand Status: Limited
