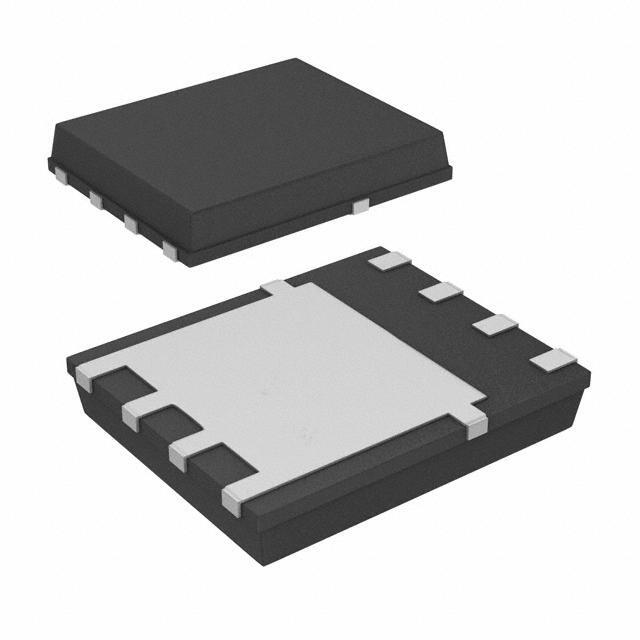

Same model may have multiple batches, images only for reference.

IRFH5207TRPBF

Name: IRFH5207TRPBF
Brand: Infineon Technologies
SKU: 160386
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IRFH5207TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 75V 13A 8-PQFN
Datasheet	IRFH5207TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Obsolete(EOL)
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	75V
Continuous Drain Current at 25°C	13A (Ta), 71A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	4V @ 100μA
Max Gate Charge	59nC @ 10V
Max Input Capacitance	2474pF @ 25V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	3.6W (Ta), 105W (Tc)
Maximum Rds On at Id,Vgs	9.6 mOhm @ 43A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	PQFN (5x6)
Dimension	8-PowerVDFN
Win Source Part Number	205356-IRFH5207TRPBF
Family Name	IRFH5207
Introduction Date	April 12, 2010
ECCN	EAR99
Country of Origin	Malaysia
Halogen Free	Compliant
Estimated EOL Date	Obsolete
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRFH5207TRPBF CAD Model

Alternative Products

Description

The Infineon Technologies IRFH5207TRPBF is a N-Channel MOSFET with a maximum power dissipation of 3.6W (Ta) and 105W (Tc).

Mounting: Surface mount device
Package: PQFN (5x6)
Drain-Source Breakdown Voltage: 75V
Continuous Drain Current @ 25°C: 13A (Ta) and 71A (Tc)
Gate-Source Threshold Voltage: 4V @ 100μA
Maximum Gate Charge: 59nC @ 10V
Maximum Rds On at Id,Vgs: 9.6 mOhm @ 43A, 10V
Status: Discontinued
Replacement: SI7148DP-T1
Halogen-free: Compliant
Application: Discrete semiconductor products
