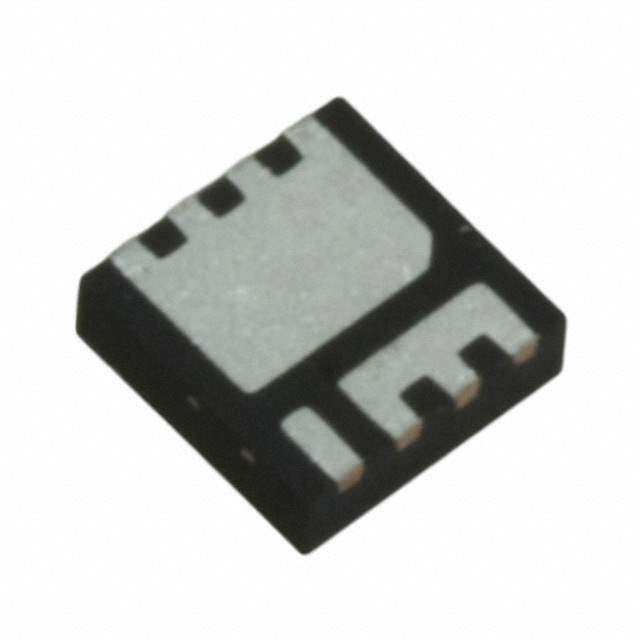

IRFH5301TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRFH5301TRPBF

Part No IRFH5301TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 35A 5X6 PQFN
Datasheet
IRFH5301TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 35A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.35V @ 100μA
Max Gate Charge 77nC @ 10V
Max Input Capacitance 5114pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.6W (Ta), 110W (Tc)
Maximum Rds On at Id,Vgs 1.85 mOhm @ 50A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PQFN (5x6) Single Die
Dimension 8-PowerVDFN
Win Source Part Number 084007-IRFH5301TRPBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRFH5301TRPBF CAD Model

Description

The Infineon Technologies 084007-IRFH5301TRPBF is an N-channel MOSFET designed for use in discrete semiconductor products.

  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 35A @ 25°C
  • Gate-Source Threshold Voltage: 2.35V @ 100μA
  • Maximum Gate Charge: 77nC @ 10V
  • Maximum Input Capacitance: 5114pF @ 15V
  • Maximum Rds On at Id,Vgs: 1.85 mOhm @ 50A, 10V
  • Status: Active
  • Temperature Range: -55°C to 150°C (TJ)
  • Package: PQFN (5x6) Single Die
  • Popularity: High
