Same model may have multiple batches, images only for reference.

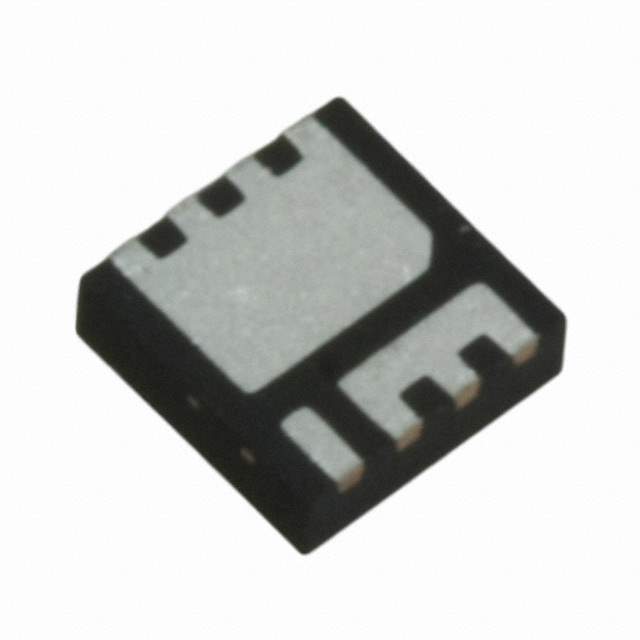

IRFH5302TR2PBF Real Image
Same model may have multiple batches, images only for reference.

IRFH5302TR2PBF

Part No IRFH5302TR2PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 32A 5X6 PQFN  /  N-Channel 30 V 32A (Ta), 100A (Tc) Surface Mount PQFN (5x6) Single Die
Datasheet
IRFH5302TR2PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Package Cut Tape (CT),
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 32A (Ta), 100A (Tc)
Rds On (Max) @ Id, Vgs 2.1mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 2.35V @ 100µA
Gate Charge (Qg) (Max) @ Vgs 76 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds 4400 pF @ 15 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PQFN (5x6) Single Die
Package / Case 8-PowerVDFN
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SP001554780,IRFH5302TR2PBFTR,IRFH5302TR2PBFDKR,IRFH5302TR2PBFCT
Standard Package 400
Win Source Part Number 1065546-IRFH5302TR2PBF
Ultra Librarian 3D Model Ultra Librarian IRFH5302TR2PBF CAD Model

Description

The Infineon Technologies IRFH5302TR2PBF is an N-channel MOSFET device with a maximum drain to source voltage of 30V.

  • Package: PQFN (5x6) Single Die
  • Mounting: Surface-mount device
  • Rds On (Max) @ Id, Vgs: 2.1mOhm @ 50A, 10V
  • Gate Charge (Qg) (Max) @ Vgs: 76 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds: 4400 pF @ 15 V
  • Operating Temperature Range: -55°C to 150°C (TJ)
