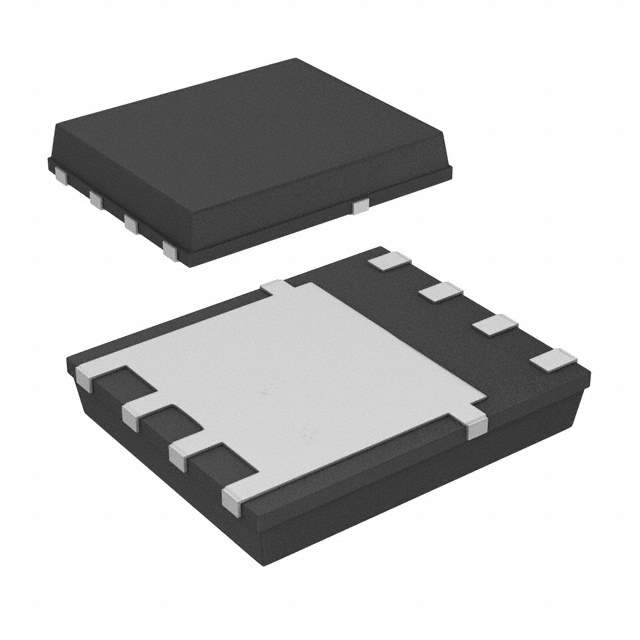

Same model may have multiple batches, images only for reference.

IRFH7110TRPBF

Name: IRFH7110TRPBF
Brand: Infineon Technologies
SKU: 462066
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IRFH7110TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N CH 100V 11A PQFN 5X6
Datasheet	IRFH7110TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	100V
Continuous Drain Current at 25°C	11A (Ta), 58A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	4V @ 100μA
Max Gate Charge	87nC @ 10V
Max Input Capacitance	3240pF @ 25V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	3.6W (Ta), 104W (Tc)
Maximum Rds On at Id,Vgs	13.5 mOhm @ 35A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-PQFN (5x6)
Dimension	8-TQFN Exposed Pad
Win Source Part Number	1046887-IRFH7110TRPBF
Family Name	IRFH7110TR
Introduction Date	September 01, 2011
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2026
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRFH7110TRPBF CAD Model

Alternative Products

Description

The Infineon Technologies IRFH7110TRPBF is a MOSFET transistor designed for power management and industrial applications.

Polarity: N-channel
Drain-Source Breakdown Voltage: 100V
Continuous Drain Current (25°C): 11A
Continuous Drain Current (Tc): 58A
Maximum Rds On: 13.5 mOhm @ 35A, 10V
Gate-Source Threshold Voltage: 4V @ 100μA
Maximum Gate Charge: 87nC @ 10V
Maximum Input Capacitance: 3240pF @ 25V
Maximum Gate-Source Voltage: ±20V
Package: 8-PQFN (5x6)
Mounting: SMD (SMT)
Power Dissipation (Ta): 3.6W
Power Dissipation (Tc): 104W
Operating Temperature Range: -55°C to 150°C (TJ)
