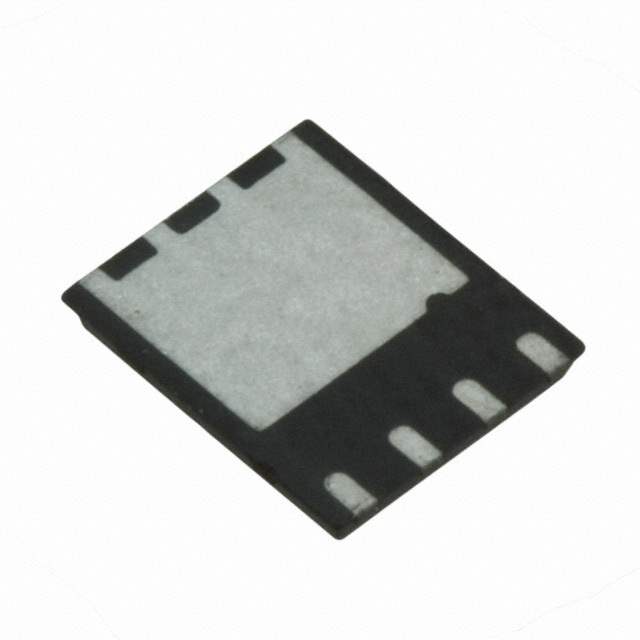

The Infineon Technologies IRFH7934TRPBF is an N-Channel MOSFET with a maximum power dissipation of 3.1W (Ta).

• Maximum Power Dissipation: 3.1W (Ta)
• Drain-Source Breakdown Voltage: 30V
• Continuous Drain Current: 24A (Ta), 76A (Tc) @ 25°C
• Gate-Source Threshold Voltage: 2.35V @ 50μA
• Maximum Gate Charge: 30nC @ 4.5V
• Maximum Input Capacitance: 3100pF @ 15V
• Maximum Rds On @ Id,Vgs: 3.5 mOhm @ 24A, 10V
• Package: PQFN (5x6)
• Temperature Range: -55°C to 150°C (TJ)
• Category: Discrete Semiconductor Products
• Popularity: High
• Supply and Demand Status: Balanced
