The Infineon Technologies 016471-IRFR9024NPBF is a P-channel MOSFET with a drain-source breakdown voltage of 55V.

• Power Dissipation (Max): 38W (Tc)
• Continuous Drain Current: 11A (Tc) @ 25°C
• Gate-Source Threshold Voltage: 4V @ 250μA
• Max Gate Charge: 19nC @ 10V
• Max Rds On @ Id,Vgs: 175 mOhm @ 6.6A, 10V

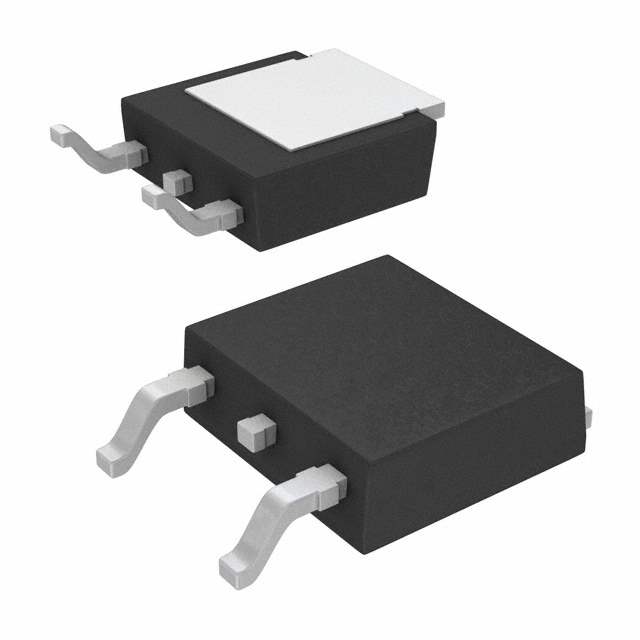

• Package: D-Pak
• Dimension: TO-252-3, DPak (2 Leads + Tab), SC-63
• Application: power management applications
• Recommendation: not recommended for new designs
• Popularity: high
• Alternative parts: STD10PF06T4, STD10PF06, MTD20P06HDLT4, and UF9Z24L-TN3-R
