The Infineon Technologies IRFZ44NLPBF is an N-channel MOSFET transistor designed for use in discrete semiconductor products.

• Power Dissipation: 3.8W (Ta), 94W (Tc)
• Drain-Source Breakdown Voltage: 55V
• Maximum Rds on at Id, Vgs: 17.5 mOhm @ 25A, 10V

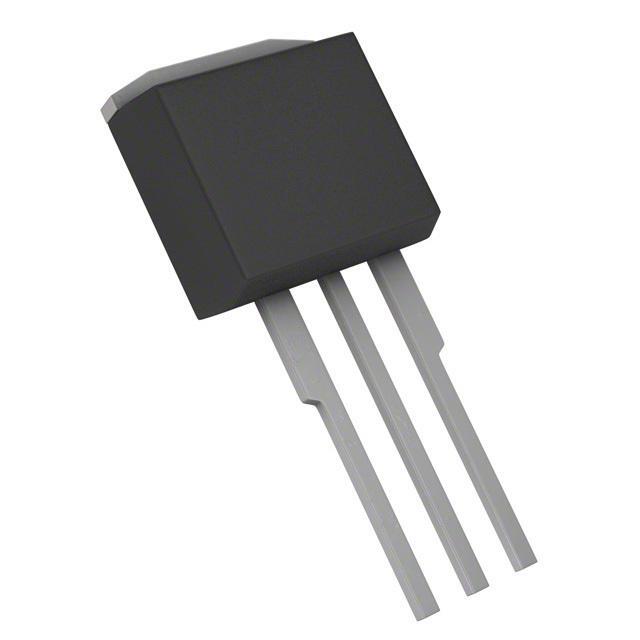

• Package: TO-262
• Dimension: TO-262-3 Long Leads, I2Pak, TO-262AA
• Maximum Gate-Source Voltage: ±20V
• Gate-Source Threshold Voltage: 4V @ 250μA
• Maximum Gate Charge: 63nC @ 10V
• Maximum Input Capacitance: 1470pF @ 25V
• Operating Temperature: -55°C to 175°C (TJ)
• Status: now active
• Supply and demand status: balanced
