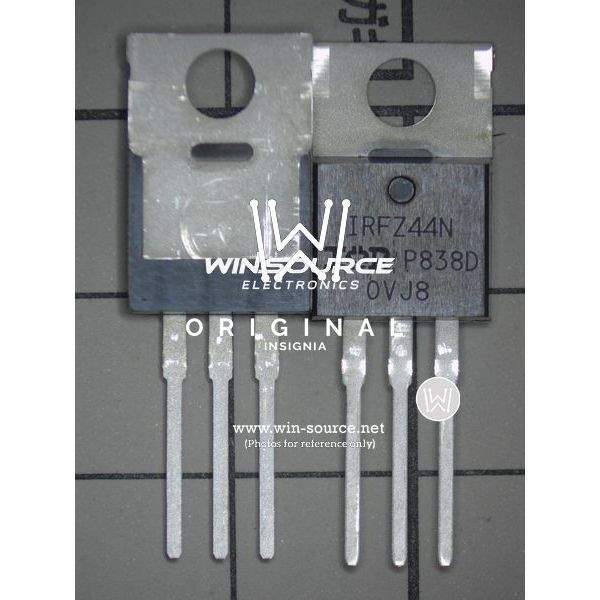

IRFZ44NPBF Infineon Technologies IRFZ44NPBF Real Image IRFZ44NPBF real image
IRFZ44NPBF Infineon Technologies IRFZ44NPBF Real Image IRFZ44NPBF real image
Same model may have multiple batches, images only for reference.

IRFZ44NPBF

Part No IRFZ44NPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 55V 49A TO-220AB
Datasheet
IRFZ44NPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 55V
Continuous Drain Current at 25°C 49A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 63nC @ 10V
Max Input Capacitance 1470pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 94W (Tc)
Maximum Rds On at Id,Vgs 17.5 mOhm @ 25A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-220AB
Dimension TO-220-3
Win Source Part Number 094009-IRFZ44NPBF
Family Name IRFZ44
Introduction Date October 31, 2003
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRFZ44NPBF CAD Model

Description

The Infineon Technologies IRFZ44NPBF component is a MOSFET that is designed to support various electronic applications.

  • Manufacturer: Infineon Technologies
  • Win Source Part Number: 094009-IRFZ44NPBF
  • Category: Discrete Semiconductor Products
  • Popularity: high
