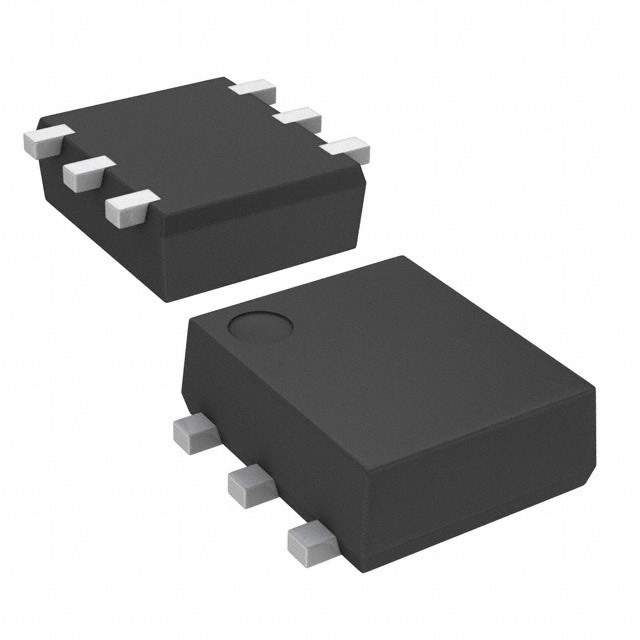

MTM861270LBF Real Image
Same model may have multiple batches, images only for reference.

MTM861270LBF

Part No MTM861270LBF
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET P-CH Si 20V 2A 6-Pin WSSMini6-F1 / MOSFET P-CH 20V 2A WSSMINI6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4V
Gate-Source Threshold Voltage 1.1V @ 1mA
Max Input Capacitance 300pF @ 10V
Maximum Gate-Source Voltage ±10V
Power Dissipation (Max) 540mW (Ta)
Maximum Rds On at Id,Vgs 120 mOhm @ 1A, 4V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package WSSMini6-F1
Dimension 6-SMD, Flat Leads
Win Source Part Number 024587-MTM861270LBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name MTM861270BF
Introduction Date January 01, 2000
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian MTM861270LBF CAD Model

Description

The Panasonic Electronic Components MTM861270LBF is a P-channel MOSFET that offers excellent performance and reliability. With a maximum power dissipation of 540mW, this component is suitable for various applications.

  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 2A @ 25°C
  • Active component: Widely used in the electronics industry
  • Supply and demand status: sufficient, making it easy to obtain
