IRLHS2242TRPBF

Name: IRLHS2242TRPBF
Brand: Infineon Technologies
SKU: 462724
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRLHS2242TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 20V 15A 2X2 PQFN
Datasheet	IRLHS2242TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	20V
Continuous Drain Current at 25°C	7.2A (Ta), 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Gate-Source Threshold Voltage	1.1V @ 10μA
Max Gate Charge	12nC @ 10V
Max Input Capacitance	877pF @ 10V
Maximum Gate-Source Voltage	±12V
Power Dissipation (Max)	2.1W (Ta), 9.6W (Tc)
Maximum Rds On at Id,Vgs	31 mOhm @ 8.5A, 4.5V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	6-PQFN (2x2)
Dimension	6-PowerVDFN
Win Source Part Number	1047543-IRLHS2242TRPBF
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRLHS2242TRPBF CAD Model

Alternative Products

Description

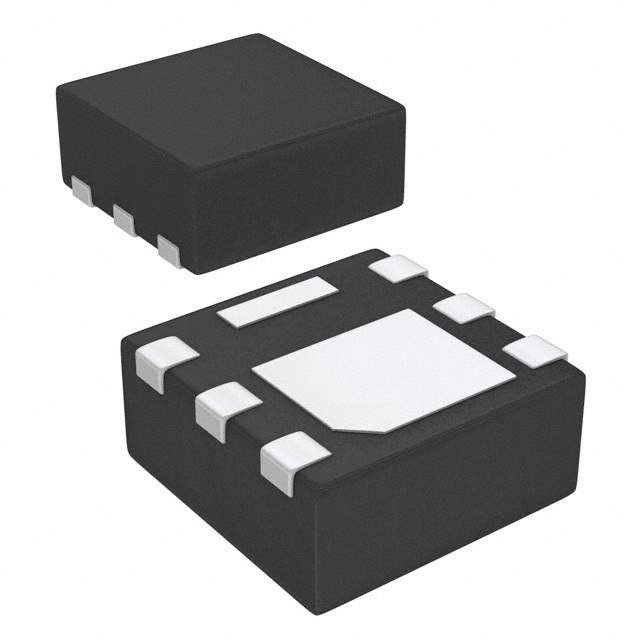

The Infineon Technologies IRLHS2242TRPBF is a P-channel MOSFET transistor designed for SMD (SMT) mounting.

Case/Package: 6-PQFN (2x2)
Dimensions: 6-PowerVDFN
Maximum Power Dissipation: 2.1W (Ta), 9.6W (Tc)
Drain-Source Breakdown Voltage: 20V
Drive Voltage (max Rds On, min Rds On): 2.5V, 4.5V
Continuous Drain Current @ 25°C: 7.2A (Ta), 15A (Tc)
Maximum Rds On @ Id,Vgs: 31 mOhm @ 8.5A, 4.5V
Supply and Demand: Balanced
