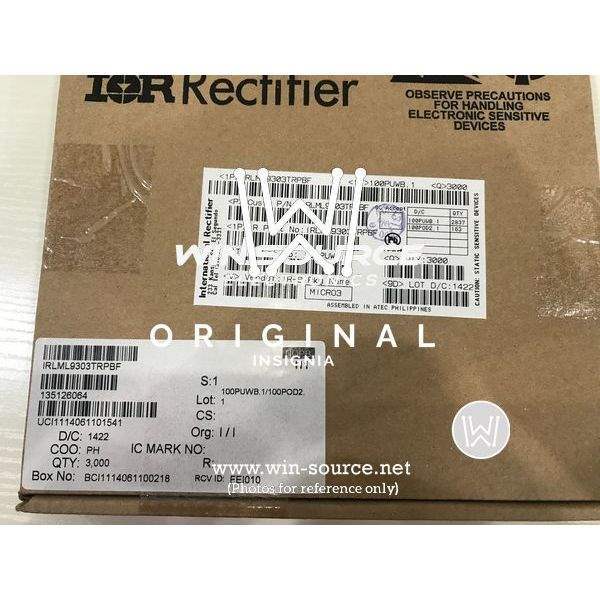

Same model may have multiple batches, images only for reference.

IRLML9303TRPBF

Name: IRLML9303TRPBF
Brand: Infineon Technologies
SKU: 161527
Availability: InStock
Rating: 4.85 (196 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRLML9303TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET P-CH 30V 2.3A 3-Pin SOT-23 T/R / MOSFET P-CH 30V 2.3A SOT-23-3
Datasheet	IRLML9303TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	2.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.4V @ 10μA
Max Gate Charge	2nC @ 4.5V
Max Input Capacitance	160pF @ 25V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	1.25W (Ta)
Maximum Rds On at Id,Vgs	165 mOhm @ 2.3A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	Micro3/SOT-23
Dimension	TO-236-3, SC-59, SOT-23-3
Win Source Part Number	017777-IRLML9303TRPBF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Family Name	IRLML9303
Introduction Date	May 27, 2010
ECCN	EAR99
Country of Origin	Philippines, Thailand
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IRLML9303TRPBF CAD Model

Alternative Products

Description

The Infineon Technologies IRLML9303TRPBF is a P-channel MOSFET transistor that comes in a Micro3/SOT-23 package.

Drain-Source Breakdown Voltage: 30V
Continuous Drain Current: 2.3A @ 25°C
Gate-Source Threshold Voltage: 2.4V @ 10µA
Maximum Gate Charge: 2nC @ 4.5V
Category: Discrete Semiconductor Products
Popularity: High
Supply and Demand Status: Sufficient
Temperature Range: -55°C to 150°C (TJ)
Compliance: Halogen-free standards
