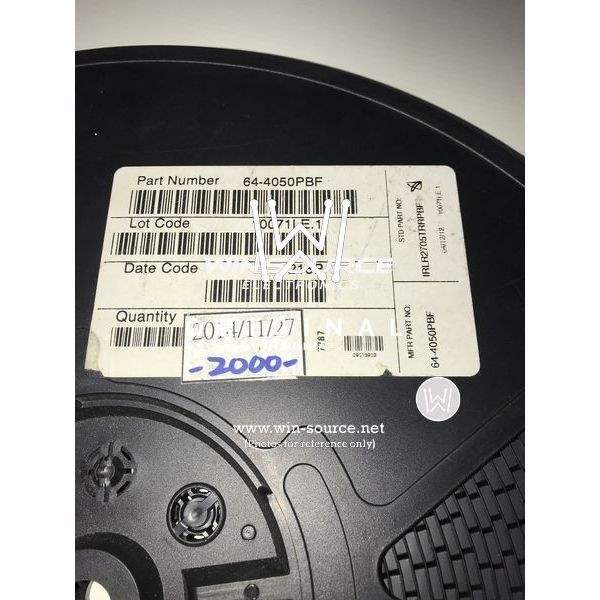

IRLR2705TRLPBF Infineon Technologies IRLR2705TRLPBF Real Image IRLR2705TRLPBF label picture 2 IRLR2705TRLPBF real image
Same model may have multiple batches, images only for reference.
IRLR2705TRLPBF Infineon Technologies IRLR2705TRLPBF Real Image IRLR2705TRLPBF label picture 2 IRLR2705TRLPBF real image
IRLR2705TRLPBF Infineon Technologies IRLR2705TRLPBF Real Image IRLR2705TRLPBF label picture 2 IRLR2705TRLPBF real image
Same model may have multiple batches, images only for reference.

IRLR2705TRLPBF

Part No IRLR2705TRLPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 55V 28A DPAK
Datasheet
IRLR2705TRLPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 55V
Continuous Drain Current at 25°C 28A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V
Gate-Source Threshold Voltage 2V @ 250μA
Max Gate Charge 25nC @ 5V
Max Input Capacitance 880pF @ 25V
Maximum Gate-Source Voltage ±16V
Power Dissipation (Max) 68W (Tc)
Maximum Rds On at Id,Vgs 40 mOhm @ 17A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package D-Pak
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 099957-IRLR2705TRLPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRLR2705TRLPBF CAD Model

Description

The IRLR2705TRLPBF is a N-channel MOSFET manufactured by Infineon Technologies that comes in a reel - TR packaging with SMD (SMT) mounting.

  • Power Dissipation: 68W (Tc)
  • Drain-Source Breakdown Voltage: 55V
  • Continuous Drain Current at 25°C: 28A (Tc)
  • Gate-Source Threshold Voltage: 2V @ 250μA
  • Maximum Gate-Source Voltage: ±16V
  • Maximum Rds On at Id, Vgs: 40 mOhm @ 17A, 10V
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • Discrete Semiconductor Products: yes
  • Market Popularity: medium
  • Supply and Demand Status: balanced
