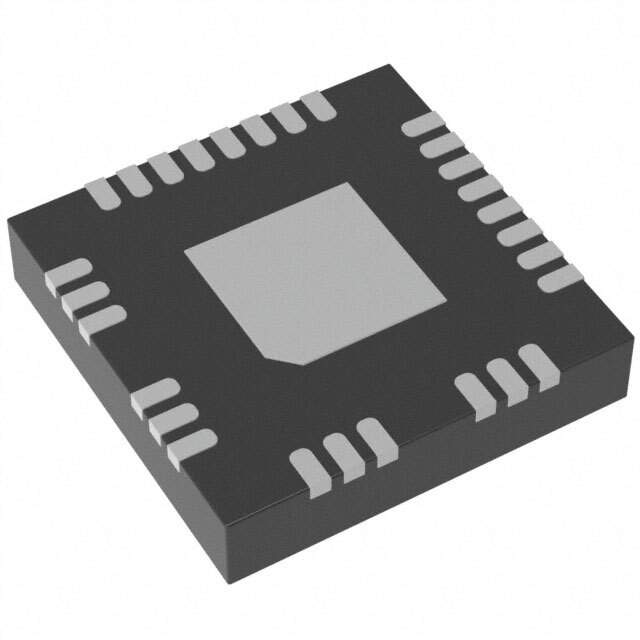

IRS2334MTRPBF Real Image
Same model may have multiple batches, images only for reference.

IRS2334MTRPBF

Part No IRS2334MTRPBF
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDGE 28MLPQ  /  Half-Bridge Gate Driver IC Non-Inverting 28-MLPQ (5x5)
Datasheet
IRS2334MTRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr Infineon Technologies
Package Tape & Reel
Driven Configuration Half-Bridge
Channel Type 3-Phase
Number of Drivers 6
Gate Type IGBT, N-Channel MOSFET
Voltage - Supply 10V ~ 20V
Logic Voltage - VIL, VIH 0.8V, 2.5V
Current - Peak Output (Source, Sink) 200mA, 350mA
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 600 V
Rise / Fall Time (Typ) 125ns, 50ns
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 28-VFQFN Exposed Pad
Supplier Device Package 28-MLPQ (5x5)
Base Product Number IRS2334
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names IRS2334MTRPBF-ND,IRS2334MTRPBFTR,IRS2334MTRPBFDKR,IRS2334MTRPBFCT,SP001542970
Standard Package 3,000
Win Source Part Number 1156923-IRS2334MTRPBF
Ultra Librarian 3D Model Ultra Librarian IRS2334MTRPBF CAD Model

Description

The IRS2334MTRPBF is a 3-phase half-bridge gate driver IC designed for high voltage and high-speed applications.

  • Application: High voltage, high-speed gate driver
  • Suitable for: Driving IGBT and N-Channel MOSFETs with non-inverting inputs
  • Number of Drivers: 6
  • Logic Voltage: 0.8V to 2.5V
  • Rise Time: 125ns
  • Fall Time: 50ns
  • Bootstrap High-Side Voltage: Up to 600V
  • Output Current (Peak): 200mA
  • Output Current (Sink): 350mA
  • Operating Temperature: -40°C to 150°C
  • Package: 28-VFQFN exposed pad
