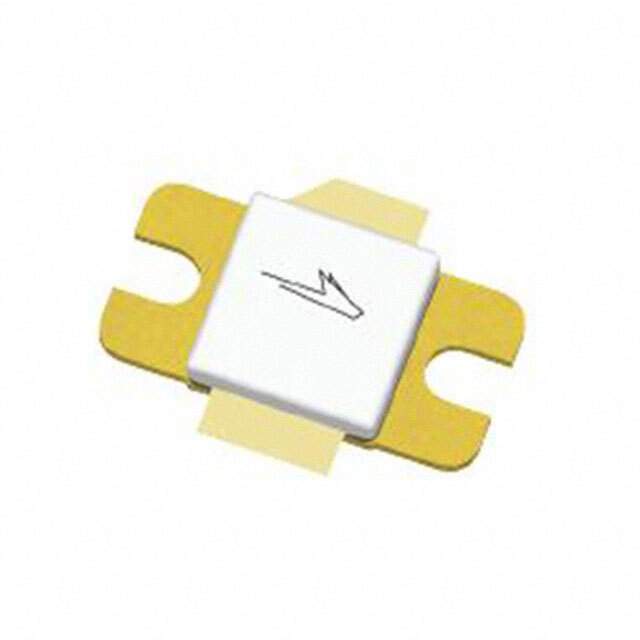

The PTFA080551E V4 is a high-power LDMOS transistor manufactured by Infineon Technologies. It's specifically designed for use in high-frequency applications, particularly in the RF power amplifier stages of various communication systems. This transistor boasts excellent linearity, high gain, and robust performance, making it suitable for demanding applications requiring reliable and efficient power amplification.

Applications:

• Land Mobile Radio (LMR) systems: Used in base stations and mobile radio equipment.
• Public Mobile Radio (PMR) systems: Employed in professional radio communication infrastructure.
• Broadcast Transmitters: Utilized in FM and VHF broadcast transmitters.
• Industrial Heating: Used for RF power generation in industrial heating equipment.
• Medical Equipment: Employed in RF generators for medical applications.

Features:

• High Output Power: Delivers substantial RF power for efficient amplification.
• High Gain: Provides significant signal amplification with minimal input power.
• Excellent Linearity: Ensures minimal signal distortion for high-quality transmission.
• Robustness: Designed to withstand harsh operating conditions and voltage variations.
• High Efficiency: Minimizes power consumption and heat dissipation.
• LDMOS Technology: Leverages LDMOS technology for superior performance and reliability.

Benefits:

• Extended Communication Range: High output power increases signal coverage.
• Improved Signal Quality: Excellent linearity reduces signal distortion and interference.
• Increased System Reliability: Robust design ensures stable operation in demanding environments.
• Reduced Operating Costs: High efficiency minimizes power consumption and cooling requirements.
• Simplified System Design: High gain simplifies the amplifier design process.

The PTFA080551E V4 is typically operated with a supply voltage within a specific range, as defined by the manufacturer. The input and output impedance are carefully matched to optimize power transfer and minimize reflections. Proper thermal management is crucial for ensuring the long-term reliability of the transistor, requiring the use of appropriate heatsinks or cooling systems. Detailed specifications regarding operating voltage, output power, gain, linearity, and thermal resistance can be found in the product datasheet. The transistor's performance is highly dependent on the matching network used, so careful design and optimization of the matching network are essential for achieving the desired performance characteristics.
