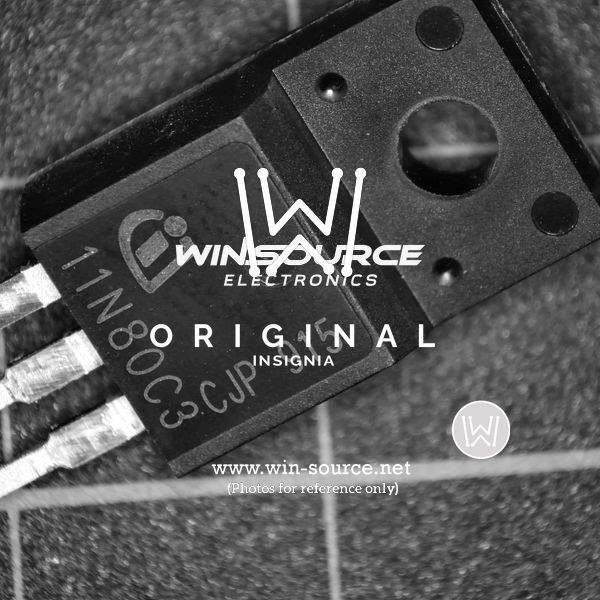

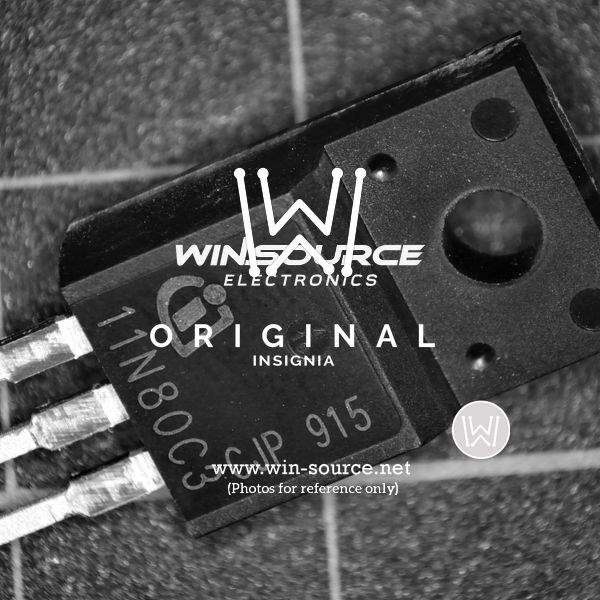

SPP11N80C3 Real Image SPP11N80C3 Real Image1 SPP11N80C3 Real Image2
Same model may have multiple batches, images only for reference.
SPP11N80C3 Real Image SPP11N80C3 Real Image1 SPP11N80C3 Real Image2
SPP11N80C3 Real Image SPP11N80C3 Real Image1 SPP11N80C3 Real Image2
Same model may have multiple batches, images only for reference.

SPP11N80C3

Part No SPP11N80C3
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 800V 11A TO-220AB
Datasheet
SPP11N80C3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 800V
Continuous Drain Current at 25°C 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 3.9V @ 680μA
Max Gate Charge 85nC @ 10V
Max Input Capacitance 1600pF @ 100V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 156W (Tc)
Maximum Rds On at Id,Vgs 450 mOhm @ 7.1A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package PG-TO220-3-1
Dimension TO-220-3
Win Source Part Number 088975-SPP11N80C3
Family Name SPP11N80C3
Introduction Date July 25, 2002
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SPP11N80C3 CAD Model

Description

The Infineon Technologies SPP11N80C3 is an N-channel MOSFET transistor that is part of the SPP11N80C3 family.

  • Popularity: High
  • Maximum Power Dissipation: 156W
  • Continuous Drain Current @ 25°C: 11A
  • Maximum Rds On: 450 mOhm @ 7.1A and 10V
  • Gate Charge: 85nC @ 10V
  • Input Capacitance: 1600pF @ 100V
