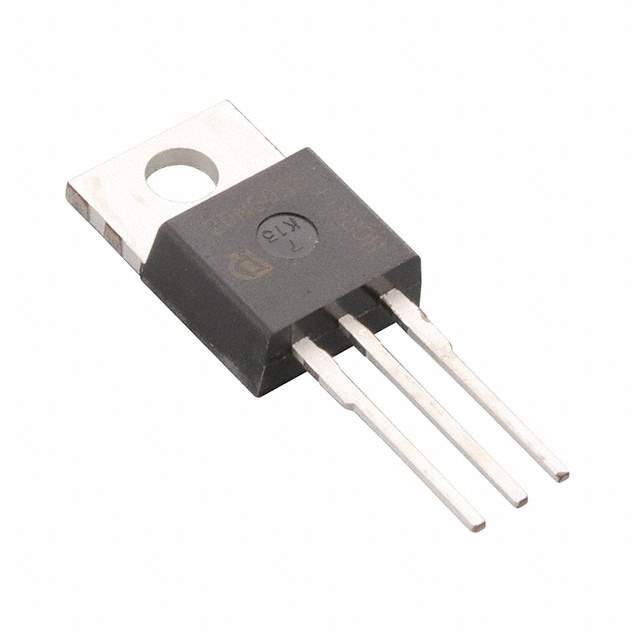

SPP20N60S5XKSA1 Real Image
Same model may have multiple batches, images only for reference.

SPP20N60S5XKSA1

Part No SPP20N60S5XKSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Datasheet
SPP20N60S5XKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series CoolMOS™
Package Tube
Product Status Not For New Designs
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 190mOhm @ 13A, 10V
Vgs(th) (Max) @ Id 5.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 103 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 3000 pF @ 25 V
Power Dissipation (Max) 208W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package PG-TO220-3-1
Package / Case TO-220-3
Base Product Number SPP20N60
Other Names SP000681062
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1278318-SPP20N60S5XKSA1
Ultra Librarian 3D Model Ultra Librarian SPP20N60S5XKSA1 CAD Model

Description

The Infineon Technologies 1278318-SPP20N60S5XKSA1 is an N-channel MOSFET that belongs to the CoolMOS™ series.

  • Maximum Drain-Source Voltage: 600V
  • Continuous Drain Current: 20A (Tc) @ 25°C
  • Rds On (Max) @ Id, Vgs: 190mOhm @ 13A, 10V
  • Gate-Source Threshold Voltage: 5.5V @ 1mA
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Status: Not for new designs
  • Application: Transistors, FETs, and MOSFETs - single
