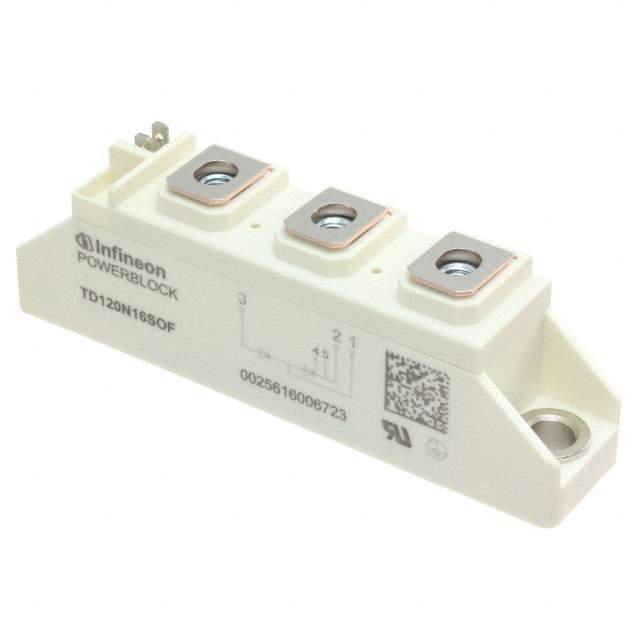

TD120N16SOFHPSA1 Real Image
Same model may have multiple batches, images only for reference.

TD120N16SOFHPSA1

Part No TD120N16SOFHPSA1
Manufacturer Infineon Technologies
Catalog SCRs - Single - Modules
Description THYRISTOR MODULE 1600V 120A  /  SCR Module 1.6 kV 190 A Series Connection - SCR/Diode Surface Mount Module
Datasheet
TD120N16SOFHPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs - Modules
Mfr Infineon Technologies
Package Tray
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 119 A
Current - On State (It (RMS)) (Max) 190 A
Voltage - Gate Trigger (Vgt) (Max) 2.5 V
Current - Gate Trigger (Igt) (Max) 100 mA
Current - Hold (Ih) (Max) 250 mA
Temperature Range - Operating 130°C (TJ)
Mounting SMD (SMT)
Package / Case Module
Base Product Number TD120N16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names TD120N16SOF,SP001272854,TD120N16SOF-ND
Standard Package 12
Win Source Part Number 1033357-TD120N16SOFHPSA1
Ultra Librarian 3D Model Ultra Librarian TD120N16SOFHPSA1 CAD Model

Description

The TD120N16SOFHPSA1 is a thyristor from Infineon Technologies designed for SCR modules.

  • Connection: Series connection of SCR/diode
  • Suitable for: various applications
  • Package: module
  • Mounting: SMD (SMT) technology
  • Current Hold (Ih) (Max): 250mA
  • Voltage-Off State: 1.6kV
  • Maximum Operating Temperature: 130°C (TJ)
