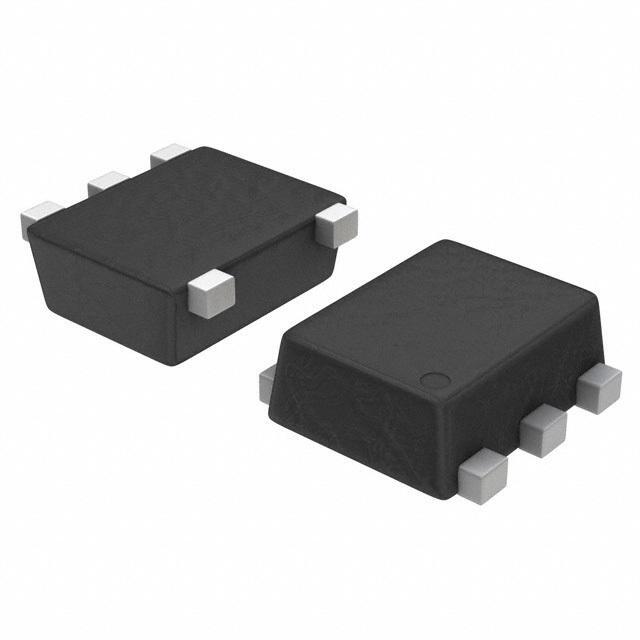

ON Semiconductor S-822T Series Voltage Regulators

The ON Semiconductor S-822T Series represents a lineup of high-precision, low-dropout micro voltage regulators that are optimal for a variety of applications requiring efficient power management. Designed with an emphasis on reliability and stability, these regulators are perfect for use in portable devices, where energy efficiency is paramount.

The S-822T Series stands out with its ultra-small package size, making it an excellent choice for space-constrained applications. Despite its compact footprint, it does not compromise on performance, offering a low dropout voltage that ensures a stable output even when the input voltage is very close to the output voltage. This characteristic is particularly useful in battery-operated devices where maximizing the usage of the available voltage is crucial.

The series is equipped with built-in features such as a low saturation with a PNP output. It also includes overcurrent protection, which safeguards the device and the load from unexpected conditions that may cause excessive current flow. Additionally, the S-822T Series is designed with an auto-discharge function that discharges the output capacitor when the chip is turned off, preventing any potential malfunctions in your circuit.

With a high-accuracy output voltage, the S-822T regulators provide a stable and precise voltage supply, ensuring that your device operates consistently under varying conditions. This level of accuracy is particularly important for sensitive electronic components that require a stable power supply for optimal performance.

ON Semiconductor's commitment to quality is evident in the S-822T Series, which is designed to meet the rigorous demands of modern electronic devices. Whether you are designing a mobile phone, a portable gaming device, or any other compact electronic gadget, the S-822T Series voltage regulators offer the perfect blend of size, efficiency, and reliability.

Key Features:

• Low dropout voltage
• High output voltage accuracy
• Overcurrent protection
• Auto-discharge function
• Ultra-small package size
• Wide operating temperature range
