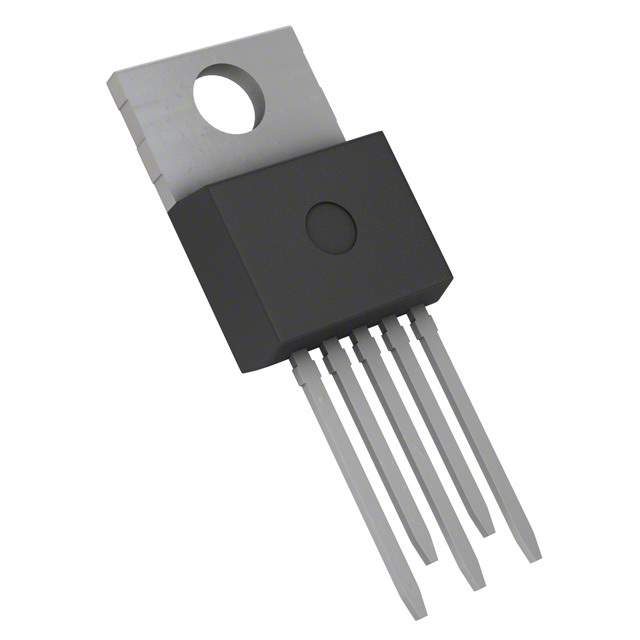

TLE4270SNKSA1 Real Image
Same model may have multiple batches, images only for reference.

TLE4270SNKSA1

Part No TLE4270SNKSA1
Manufacturer Infineon Technologies
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 0.55A TO220-5 / LDO Regulator Pos 5V 0.65A Automotive 5-Pin(5+Tab) TO-220
Datasheet
TLE4270SNKSA1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Packaging Tube
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 42V
Output Voltage 5V
Voltage Dropout (Maximum) 0.7V @ 550mA
Output Current 650mA
Operating Supply Current 1.5mA ~ 90mA
PSRR 54dB (100Hz)
Control Features Reset
Protection Features Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit, Transient Voltage
Operating Temperature Range -40°C ~ 150°C
Mounting Style Through Hole
Package TO-220-5
Manufacturer Package P-TO220-5-12
Win Source Part Number 796950-TLE4270SNKSA1
Popularity Medium
Supply and Demand Status Limited
Family Name TLE 4270
Introduction Date October 08, 1998
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian TLE4270SNKSA1 CAD Model

Description

The 796950-TLE4270SNKSA1 from Infineon Technologies is an integrated circuit used in various electronic devices.

  • Temperature Range: -40°C to 150°C
  • Voltage Input MAX: 42V
  • Package: TO-220-5
  • Number of Regulators: 1
  • Output Voltage: 5V
  • Output Current: 650mA
  • Output Type: Fixed
  • Protection Features: Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit, Transient Voltage
