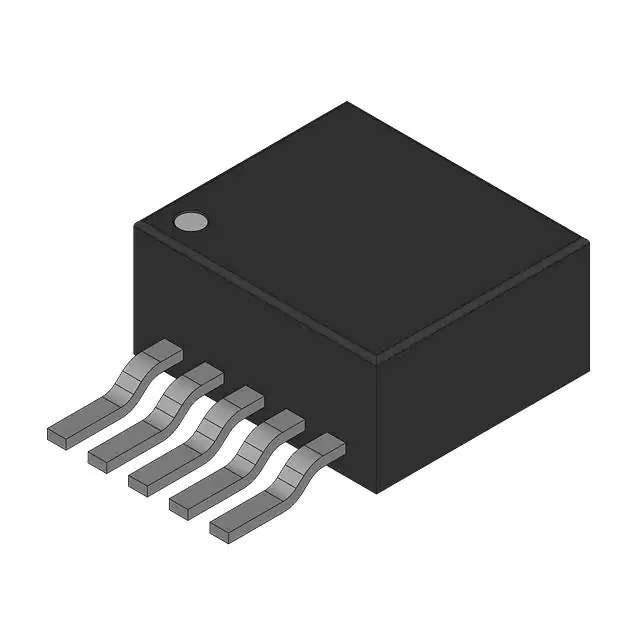

TLE4290G Real Image
Same model may have multiple batches, images only for reference.

TLE4290G

Part No TLE4290G
Manufacturer Infineon Technologies
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR FIXED LDO REG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Infineon Technologies
Package Bulk
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 42V
Voltage - Output (Min/Fixed) 5V
Voltage Dropout (Max) 0.5V @ 300mA
Current - Output 450mA
Current - Quiescent (Iq) 230 µA
Current - Supply (Max) 25 mA
PSRR 60dB (100Hz)
Control Features Delay, Power Good
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package PG-TO263-5-1
Standard Package 217 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 686810-TLE4290G
Ultra Librarian 3D Model Ultra Librarian TLE4290G CAD Model

Description

The TLE4290G is a linear voltage regulator from Infineon Technologies.

  • Manufacturer: Infineon Technologies
  • Part Number: TLE4290G
  • Type: Linear Voltage Regulator
  • Current Output: 450mA
  • Voltage Input Range: Up to 42V
  • Control Features: Delay and Power Good
  • Mounting: Surface Mount
  • Package: TO-263-6, D²Pak
  • Protection Features: Overcurrent and Overtemperature Protection
